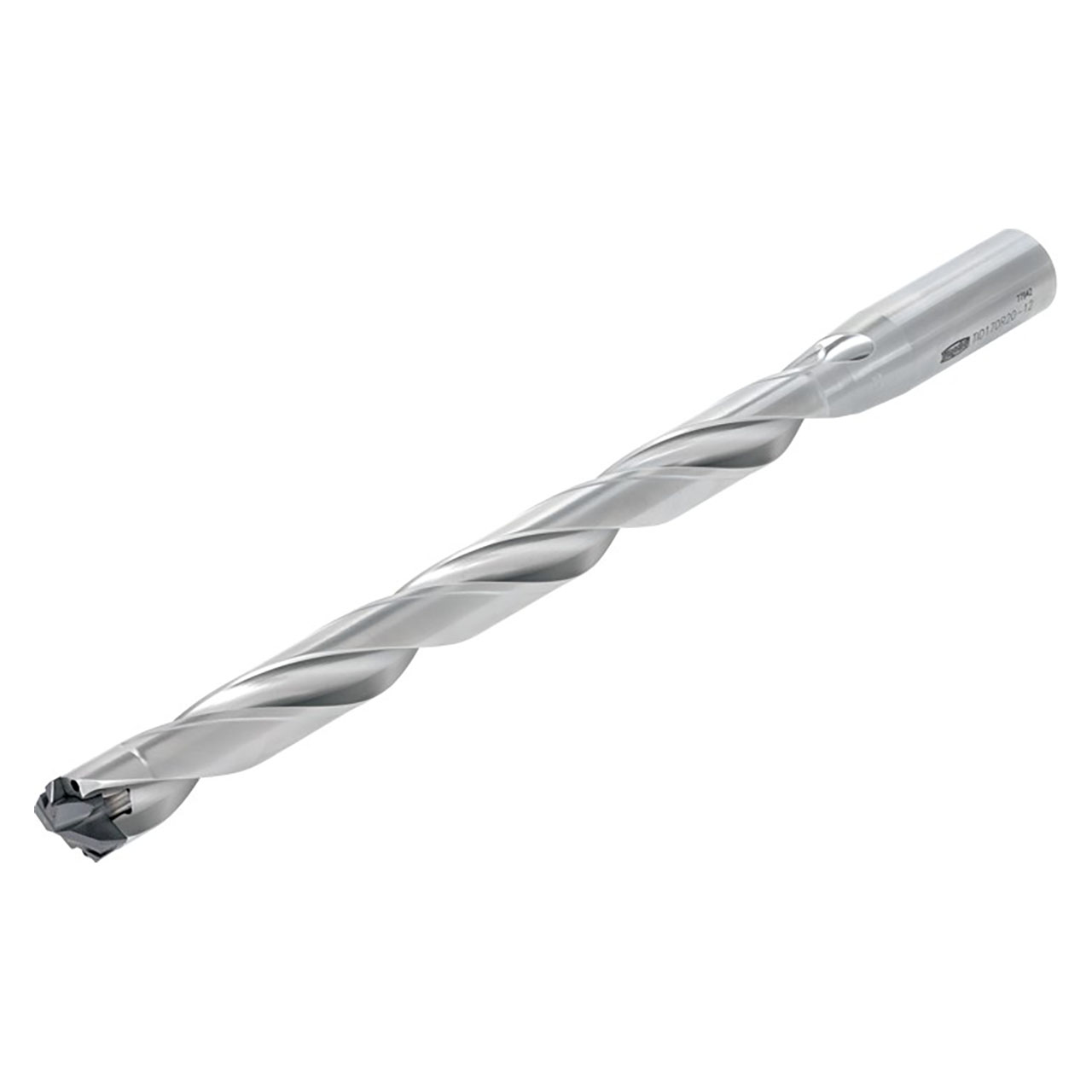

Tungaloy 6174332 | TID120R16-12 12.40mm Diameter x 208.80mm OAL Steel Replaceable-Tip Drills

$484.10
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4882"
Minimum Cutting Diameter (Decimal Inch):
0.4724"
Body Material:
Steel
Overall Length (Decimal Inch):
8.2200"
Point Length (Decimal Inch):
0.0720"
Shank Length (Decimal Inch):
1.8900"
Usable Length (Decimal Inch):
5.7480"
interval quantity:
1
SKU:
23126565
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

"DrillMeister" indexable head drill with cylindrical shank.


Product Specifications
Cutting Diameter Maximum (mm)12.4 mm
Cutting Diameter Minimum (mm.)12 mm
Connection Diameter Machine Side (Inch)5/8"
Overall Length (mm)208.80mm
Point Length (Inch)0.087"
Shank Length (Inch))1.89"
Shank Length (mm)6.954"
Insert Seat Size Code (SSC)14
Coolant Supply Property (CSP)Through Hole
ApplicationGeneral Drilling
