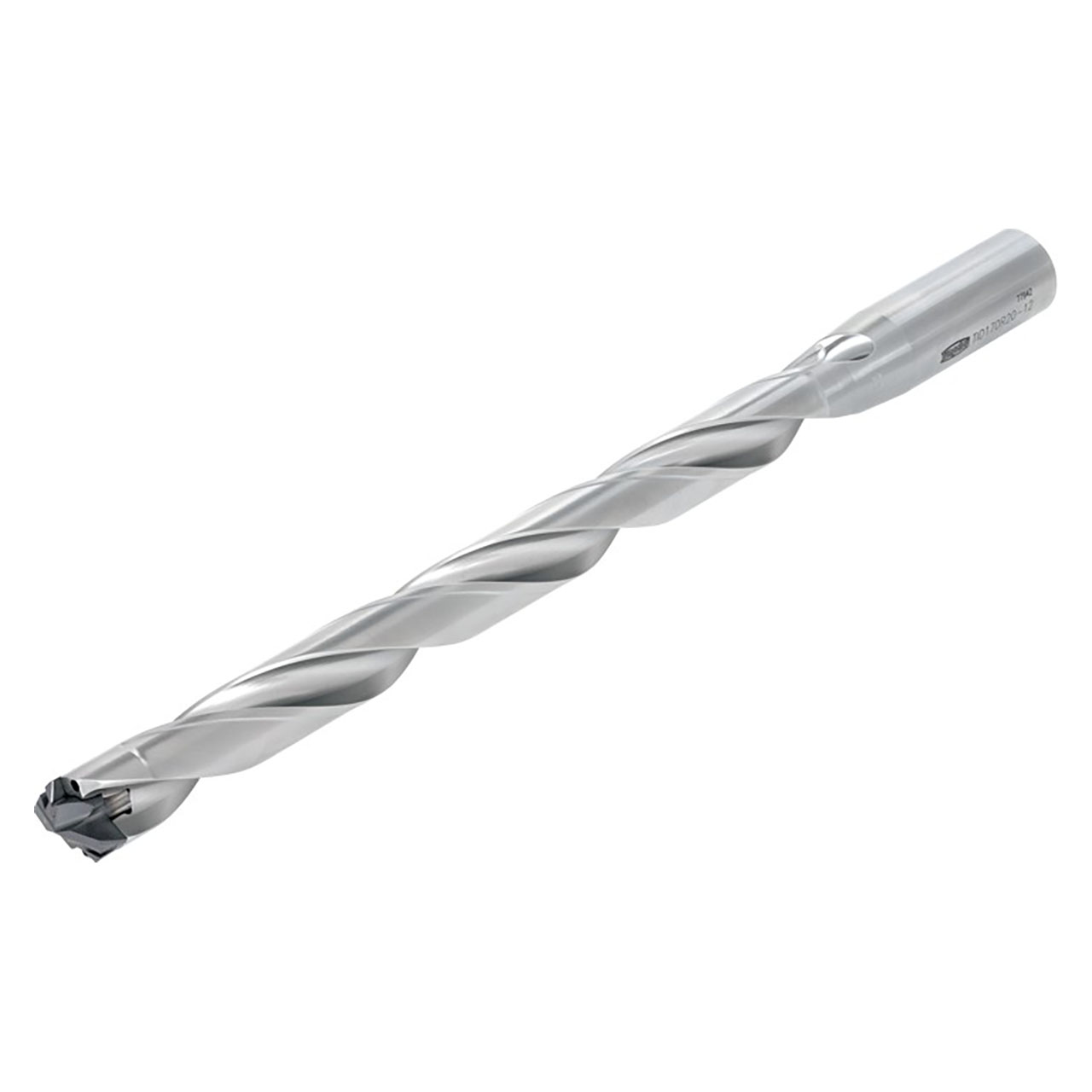

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 17.9 mm |
| Cutting Diameter Minimum (mm.) | 17 mm |
| Connection Diameter Machine Side (mm) | 16 mm |
| Overall Length (mm) | 280.70mm |
| Point Length (mm) | 1.82 mm |
| Shank Length (mm) | 48 mm |
| Usable Length (mm) | 62 mm |
| Insert Seat Size Code (SSC) | 12 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.7047"
Minimum Cutting Diameter (Decimal Inch):
0.6692"
Body Material:
Steel
Overall Length (Decimal Inch):
11.051"
Point Length (Decimal Inch):
0.1020"
Shank Length (Decimal Inch):
1.9690"
Usable Length (Decimal Inch):
8.1500"
