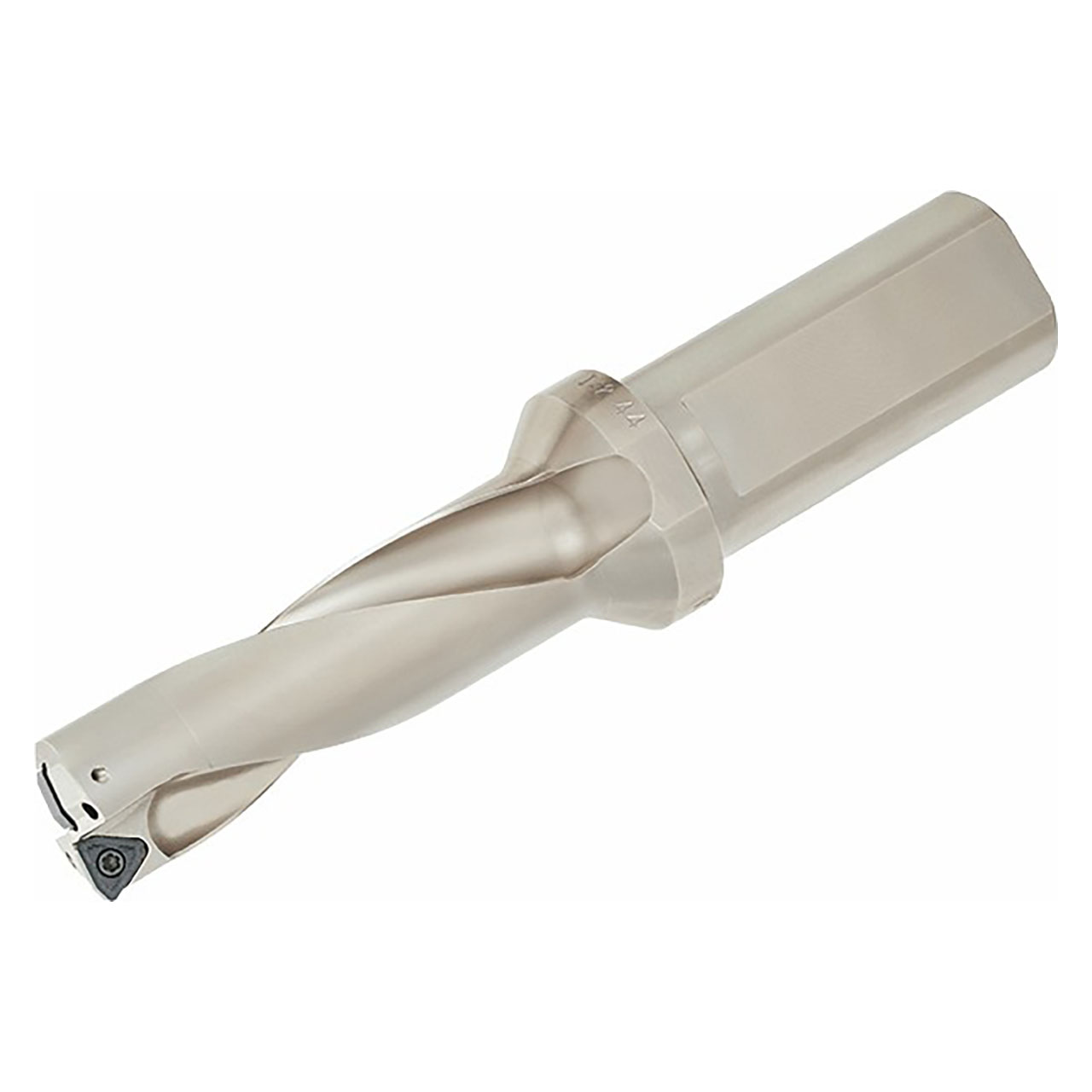

"TungSix-Drill" Indexable insert drills, L/D=3, flat cotter.
Product Specifications
| # MFG | 6712021 |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Diameter (Inch) | 0.812" |
| Functional Length (Inch) | 3.311" |
| Overall Length (Inch) | 5.547" |
| Point Length (Inch) | 0.031" |
| Shank Length (Inch) | 2.205" |
| Usable Length (Inch) | 2.47" |
| Flange Diameter (Inch) | 1.457" |
| Decimal Equivalent | 0.812" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
13/16"
Drill Diameter (Decimal Inch):
0.8120"
Drill Diameter (mm):
20.62mm
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
interval quantity:
1
