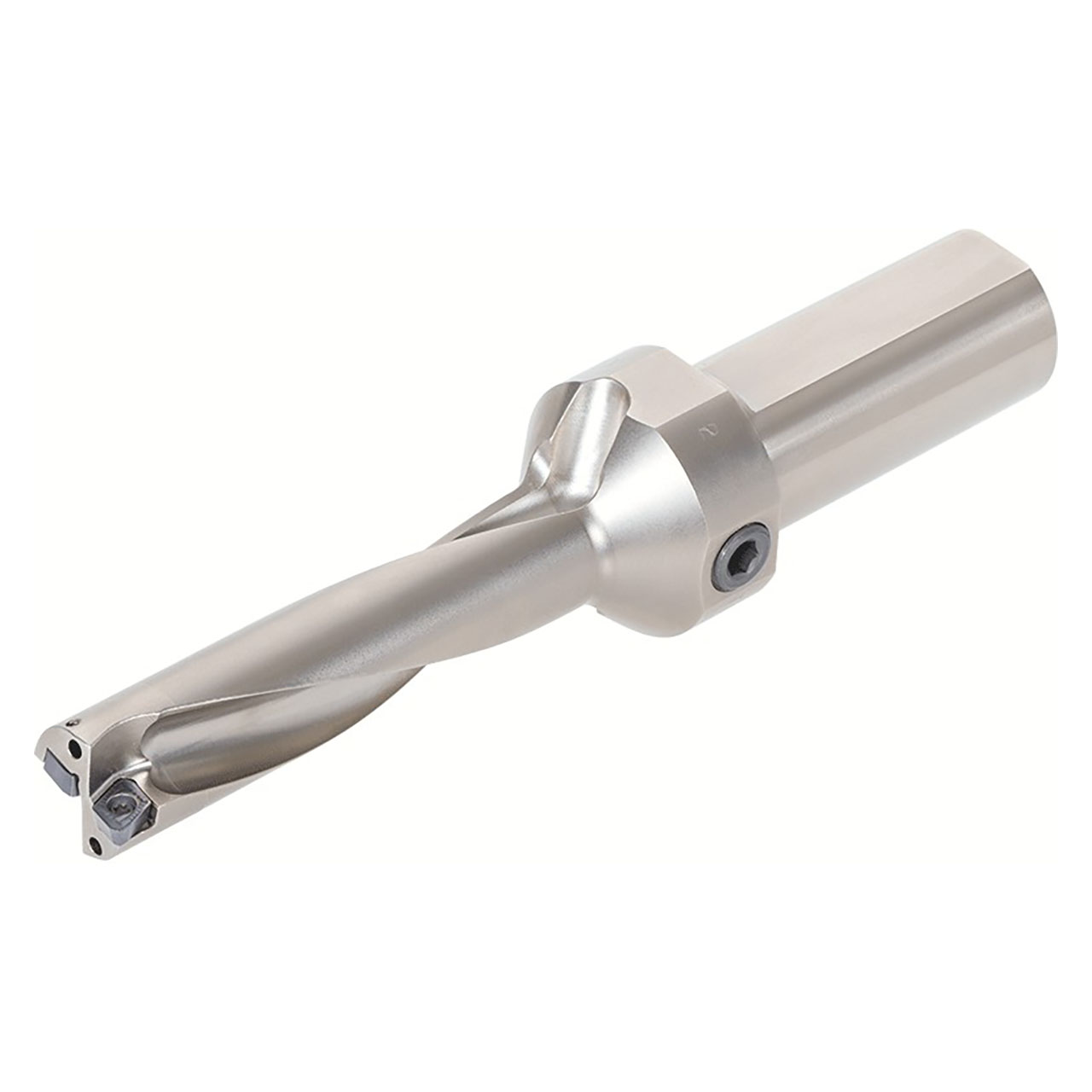

"TungDrillTwisted" Indexable insert drills with side and rear coolant port, L/D=4, flat cotter.
Product Specifications
| # MFG | 6718594 |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Cutting Diameter (Inch) | 1.687" |
| Functional Length (Inch) | 8.242" |
| Overall Length (Inch) | 10.991" |
| Point Length (Inch) | 0.061" |
| Shank Length (Inch) | 2.688" |
| Usable Length (Inch) | 6.809" |
| Length Chip Flute (Inch) | 6.93" |
| Flange Diameter (Inch) | 2.165" |
| Decimal Equivalent | 1.687" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
1-11/16"
Drill Diameter (Decimal Inch):
1.6870"
Drill Diameter (mm):
42.85mm
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.10mm
interval quantity:
1
