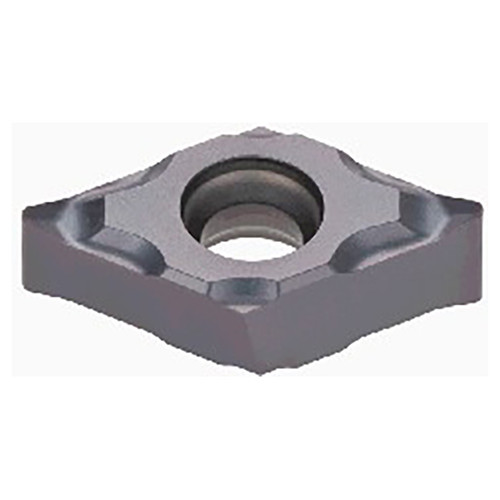

Tungaloy 6723767 | DXGU 221R SS NS9530 1/4" Circle Diameter x 1/8" Thickness x 0.016" Radius Cermet Indexable Turning Insert

$22.25 $15.58
(You save $6.67)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23021325
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Double sided 55 degree rhombic inserts with SS chipbreaker for finishing (low cutting force).


Product Specifications
# MFG6723767
Corner Radius (Inch)0.016"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.106"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0078"/rev
Minimum Depth of Cut (Inch)0.0059"
Minimum Turning Feed (Inch)0.002"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypeSS
Major Clearance Angle5 Degree
Body MaterialCarbide
