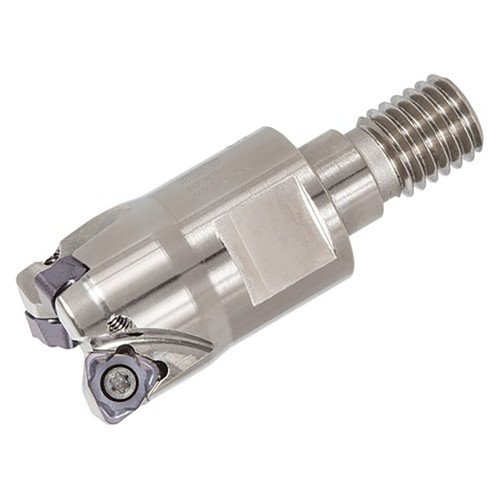

Small-radius cutter for finishing operation. Modular head with TungFlex threaded adaptation.
Product Specifications
| # MFG | 6727652 |
| Connection Diameter Machine Side (mm) | 18mm |
| Connection Retention Knob Thread Size | M10 |
| Cutting Diameter (mm) | 20mm |
| Cutting Item Count | 3 |
| Maximum Cutting Diameter (mm) | 20mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Functional Length (mm) | 30mm |
| Overall Length (mm) | 49mm |
| Shank Height (mm) | 15mm |
| Tool Cutting Edge Angle (Degree) | 94 Degree |
| Body Material | Steel |
| Application | Face Milling, Profile Milling |
