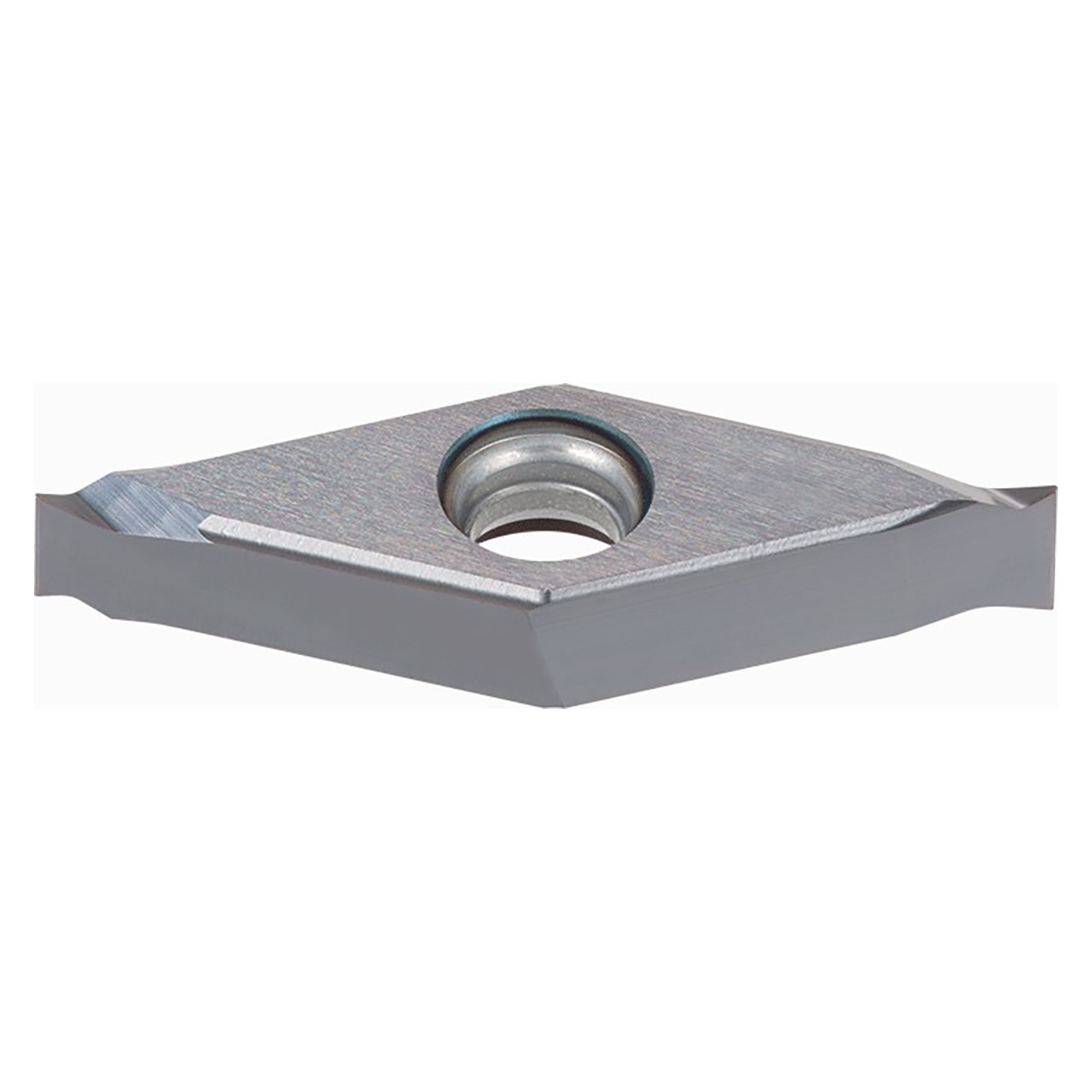

Double sided 35 degree rhombic inserts with JRP chipbreaker for finishing.
Product Specifications
| # MFG | 6734979 |
| Corner Radius (Inch) | 0.004" |
| Cutting Edge Length (Inch) | 0.382" |
| Maximum Depth of Cut (Inch) | 0.0394" |
| Fixing Hole Diameter (Inch) | 0.098" |
| Inscribed Circle Diameter (Inch) | 0.219" |
| Insert Thickness (Inch) | 0.109" |
| Maximum Turning Feed (Inch) | 0.0031"/rev |
| Minimum Depth of Cut (Inch) | 0.0059" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | Carbide |
| Grade | SH725 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Chip Breaker Type | JRP |
| Major Clearance Angle | 5 Degree |
| Body Material | Carbide |
