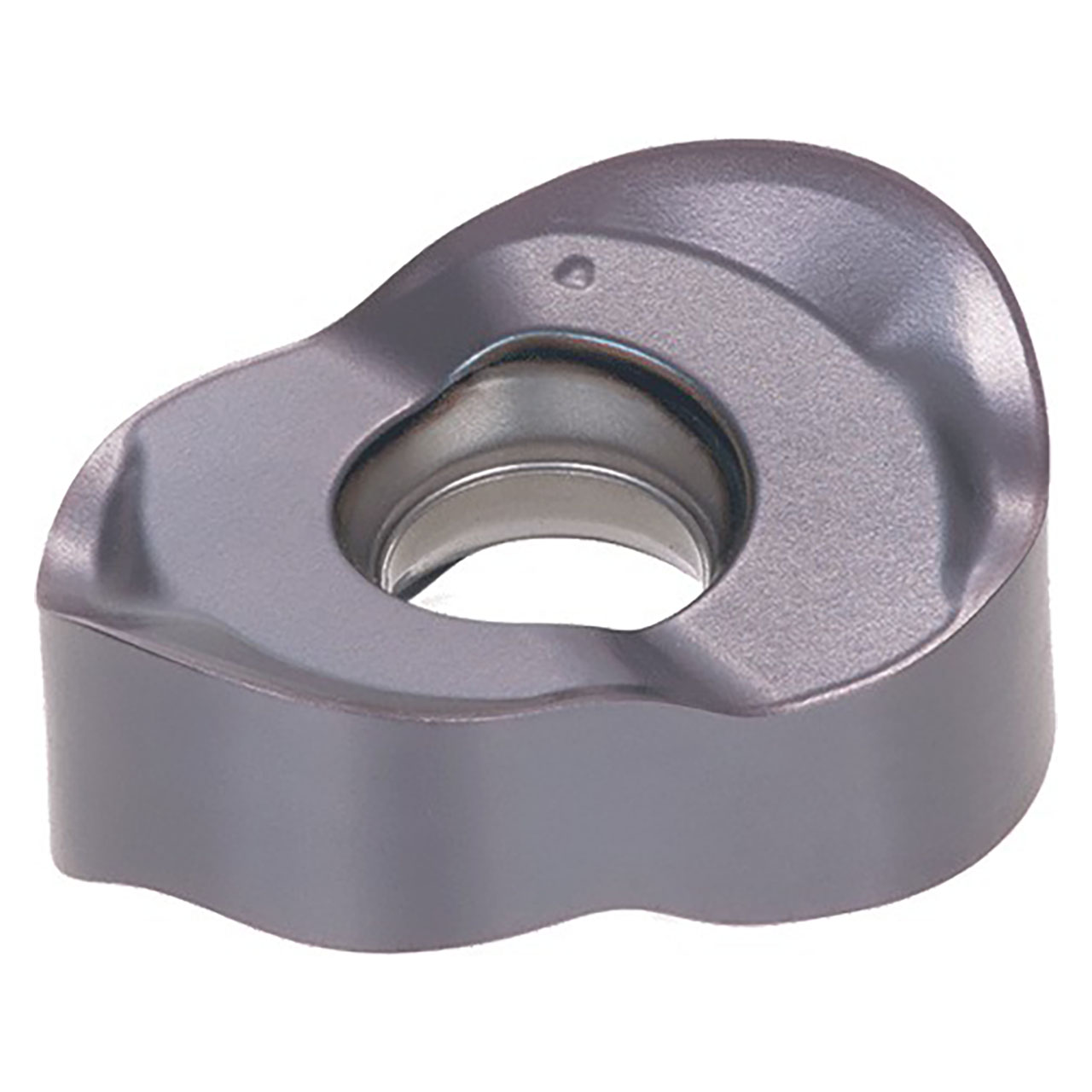

Tungaloy 6735249 | LNMX0405R4-MJ AH3135 0.22" Thickness x 0.472" Insert Length x 0.158" Radius TiAlN Coated Carbide Milling Insert

$19.60 $16.27
(You save $3.33)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Width (Inch):
21/64"
Width (Decimal Inch):
0.3230"
Width (mm):
8.20mm
Length (Inch):
15/32"
Length (Decimal Inch):
0.4720"
Length (mm):
11.99mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.59mm
interval quantity:
10
SKU:
23022815
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Double-sided radius insert with 4 edges and MJ chipbreaker.


Product Specifications
# MFG6735249
Corner Radius (Inch)0.1575"
Depth of Cut Maximum (Inch)0.157"
Insert Length (Inch)0.472"
Insert Thickness (Inch)0.22"
Insert Width (Inch)0.323"
Maximum Feed per Tooth0.0236"/tooth
Minimum Feed per Tooth0.0059"/tooth
Number of Cutting Edges4
ApplicationFace Milling, High Feed Milling, Profile Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH3135
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Hard Materials, Hi Temp Alloys
