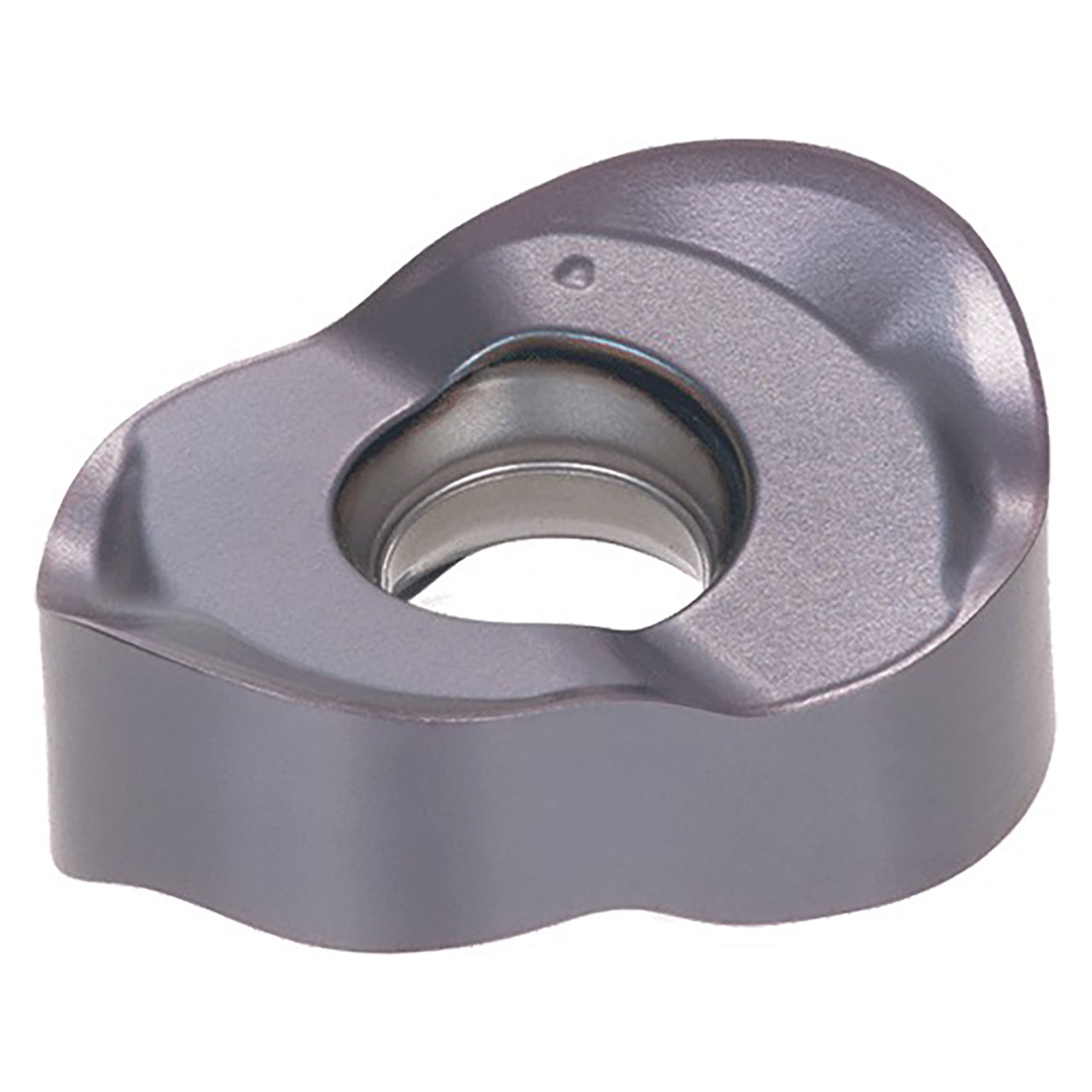

Double-sided radius insert with 4 edges and MJ chipbreaker.
Product Specifications
| # MFG | 6735298 |
| Corner Radius (Inch) | 0.1575" |
| Depth of Cut Maximum (Inch) | 0.157" |
| Insert Length (Inch) | 0.472" |
| Insert Thickness (Inch) | 0.22" |
| Insert Width (Inch) | 0.323" |
| Maximum Feed per Tooth | 0.0236"/tooth |
| Minimum Feed per Tooth | 0.0059"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
21/64"
Width (Decimal Inch):
0.3230"
Width (mm):
8.20mm
Length (Inch):
15/32"
Length (Decimal Inch):
0.4720"
Length (mm):
11.99mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.59mm
interval quantity:
10
