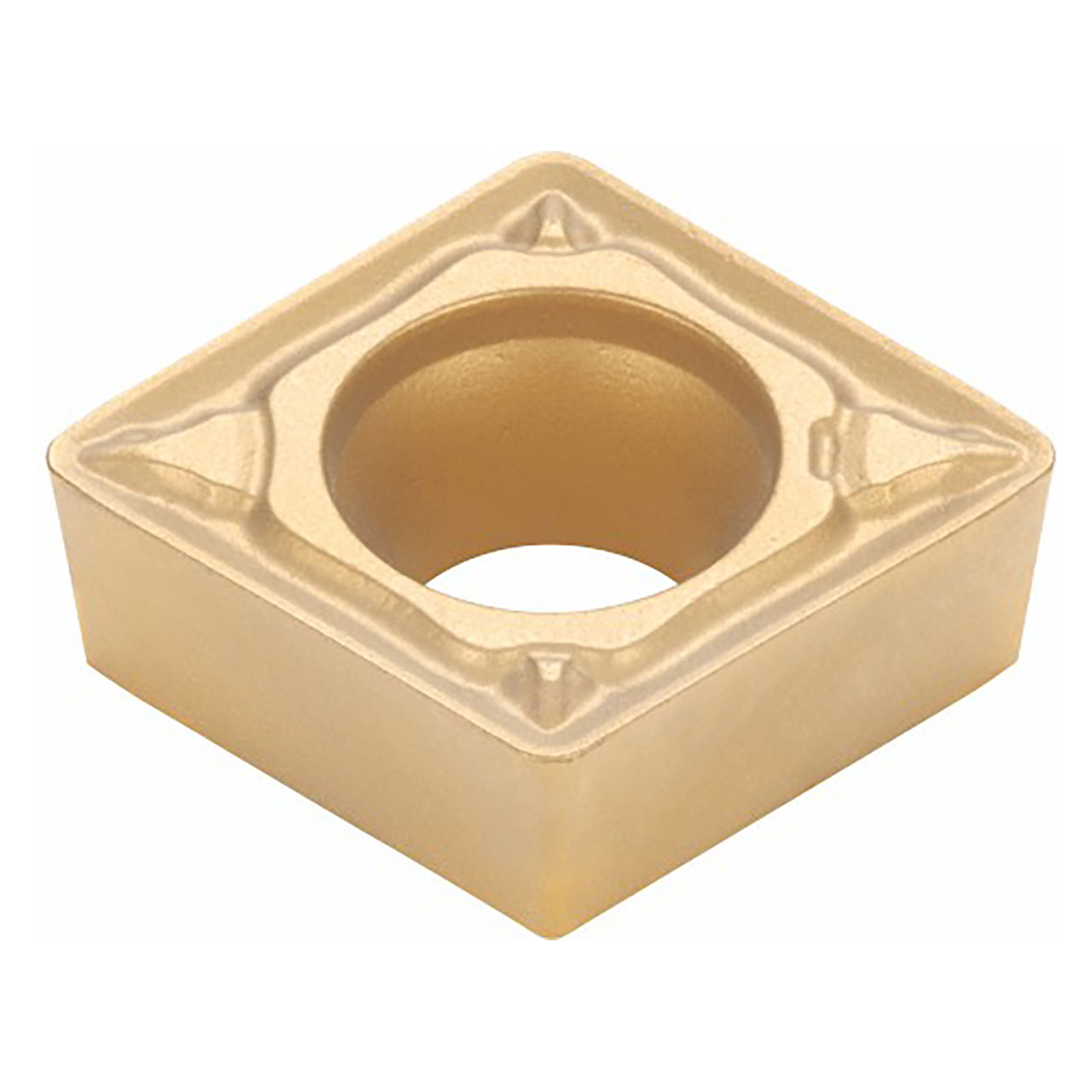

Tungaloy 6735897 | CCMT 21.52 SW NS9530 1/4" Circle Diameter x 0.094" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$10.25 $7.18
(You save $3.07)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23128036
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert with wiper edge for finishing to medium cutting.


Product Specifications
# MFG6735897
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.256"
Maximum Depth of Cut (Inch)0.0984"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0059"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypeSW
Major Clearance Angle7 Degree
Body MaterialCarbide
