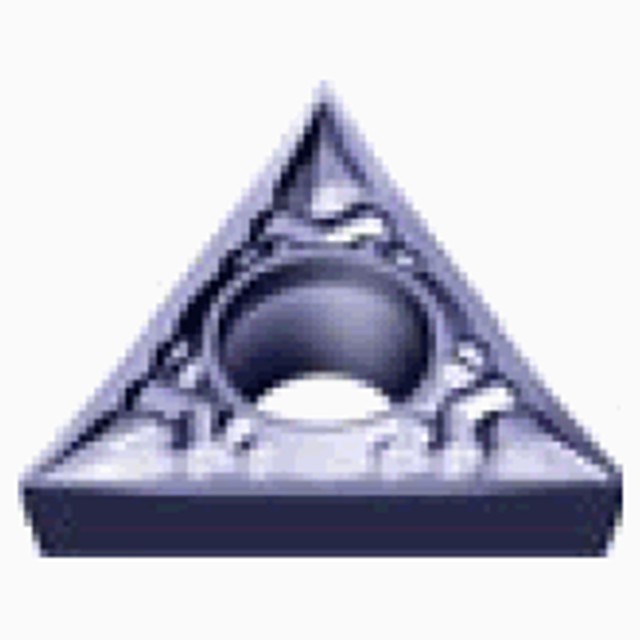

Tungaloy 6737143 | TCGT 21.50.5 FN-JS SH725 1/4" Circle Diameter x 0.094" Thickness x 0.008" Radius Carbide Indexable Turning Insert

$15.20 $10.64
(You save $4.56)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23128193
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, triangular insert for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6737143
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0039"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.0008"/rev
Cutting Edge MaterialCarbide
GradeSH725
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypeJS
Major Clearance Angle7 Degree
Body MaterialCarbide
