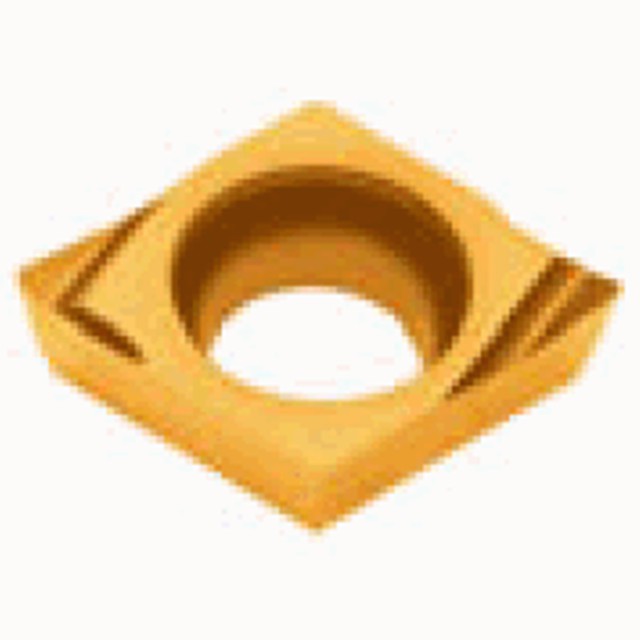

Tungaloy 6737212 | EPGT 521 FL-J08 SH725 0.156" Circle Diameter x 0.063" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$25.90 $18.13
(You save $7.77)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1560"
Inscribed Circle (mm):
3.96mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0630"
Thickness (mm):
1.60mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23128259
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, G class, 75 degree rhombic insert, for finishing.


Product Specifications
Manufacturer Part Number6737212
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.161"
Maximum Depth of Cut (Inch)0.0394"
Fixing Hole Diameter (Inch)0.091"
Inscribed Circle Diameter (Inch)0.156"
Insert Thickness (Inch)0.063"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0004"/rev
Cutting Edge MaterialCarbide
GradeSH725
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypeJ08
Major Clearance Angle11 Degree
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/32"
Inscribed Circle (Decimal Inch):
0.1560"
Inscribed Circle (mm):
3.96mm
Thickness (Inch):
1/16"
Thickness (Decimal Inch):
0.0630"
Thickness (mm):
1.60mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
