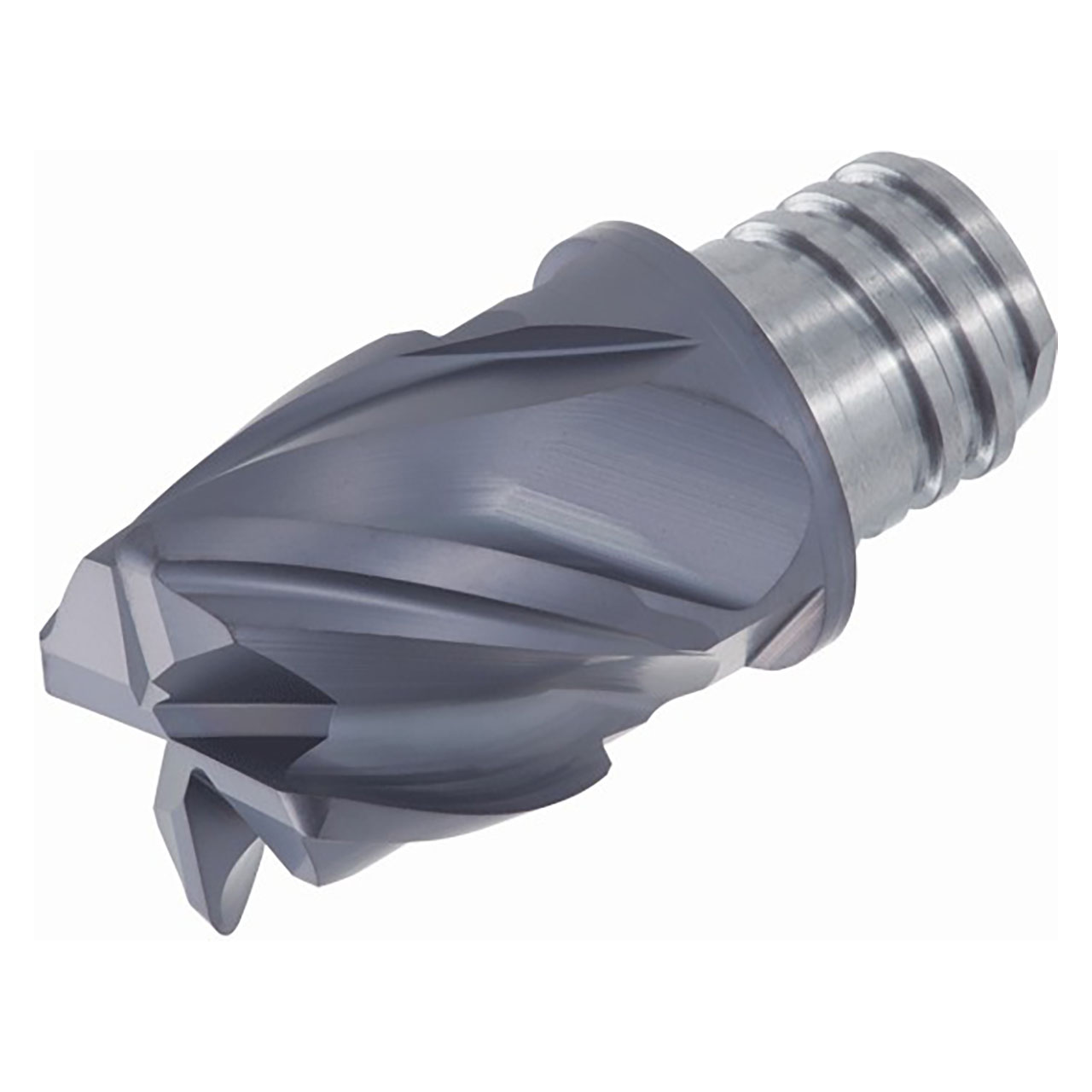

Square, 4 flutes, roughing-finishing, variable helix and pitch.
Product Specifications
| Manufacturer Part Number | 6752533 |
| Cutting Diameter Maximum (mm) | 12mm |
| Cutting Diameter (mm) | 12mm |
| Depth of Cut Maximum (mm) | 9mm |
| Functional Length (mm) | 16.5mm |
| Corner Radius (mm) | 1mm |
| Maximum Feed per Tooth (fz) | 0.13mm/tooth |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Shoulder Milling |
