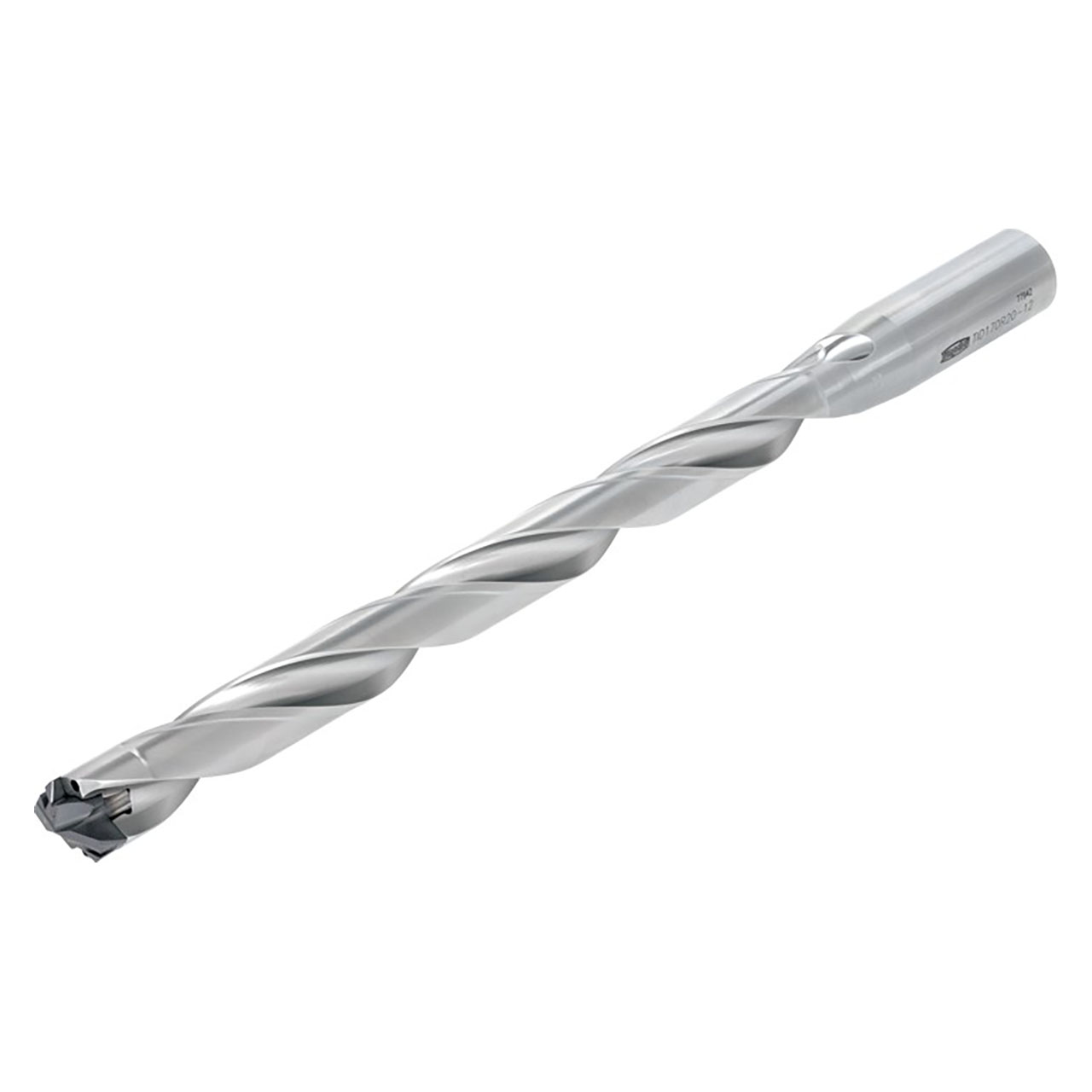

"DrillForceMeister" TIS L/D=3 indexable head drill.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.587" |
| Cutting Diameter Minimum (Inch) | 0.571" |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Overall Length (Inch) | 9.528" |
| Point Length (Inch) | 0.265" |
| Shank Length (Inch)) | 2.677" |
| Shank Length (mm) | 4.598" |
| Insert Seat Size Code (SSC) | 37 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.5870"
Minimum Cutting Diameter (Decimal Inch):
0.5710"
Body Material:
Steel
Overall Length (Decimal Inch):
9.5280"
Point Length (Decimal Inch):
0.0870"
Shank Length (Decimal Inch):
1.8900"
Usable Length (Decimal Inch):
6.9540"
