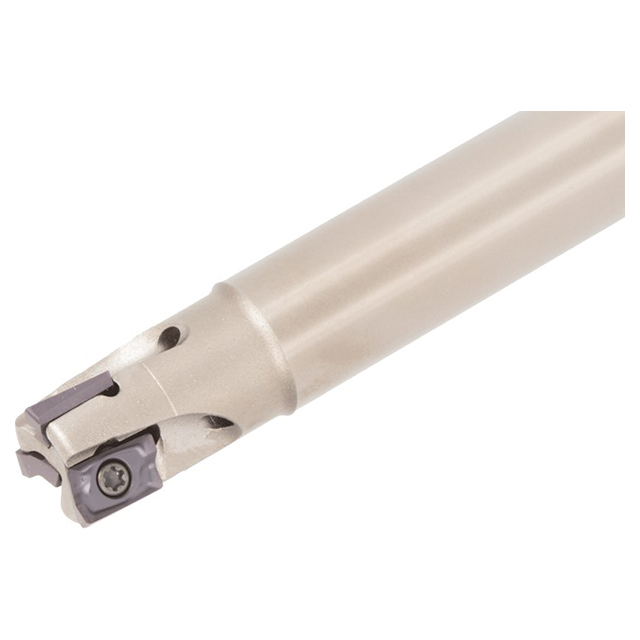

Mini square shoulder milling cutter, shank type.
Product Specifications
| # MFG | 6769903 |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Diameter (Inch) | 1" |
| Maximum Cutting Diameter (Inch) | 1" |
| Cutting Item Count | 4 |
| Maximum Depth of Cut (Inch) | 0.236" |
| Functional Length (Inch) | 8" |
| Head Length (Inch) | 1.575" |
| Overall Length (Inch) | 8" |
| Shank Length (Inch) | 6.425" |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Inch):
1"
Maximum Cutting Diameter (Decimal Inch):
1.0000"
Body Material:
Steel
Maximum Depth of Cut (Decimal Inch):
0.2360"
Head Length (Decimal Inch):
1.5750"
Overall Length (Inch):
8"
Overall Length (Decimal Inch):
8.0000"
Shank Length (Decimal Inch):
6.4250"
Shank Type:
Round
interval quantity:
1
