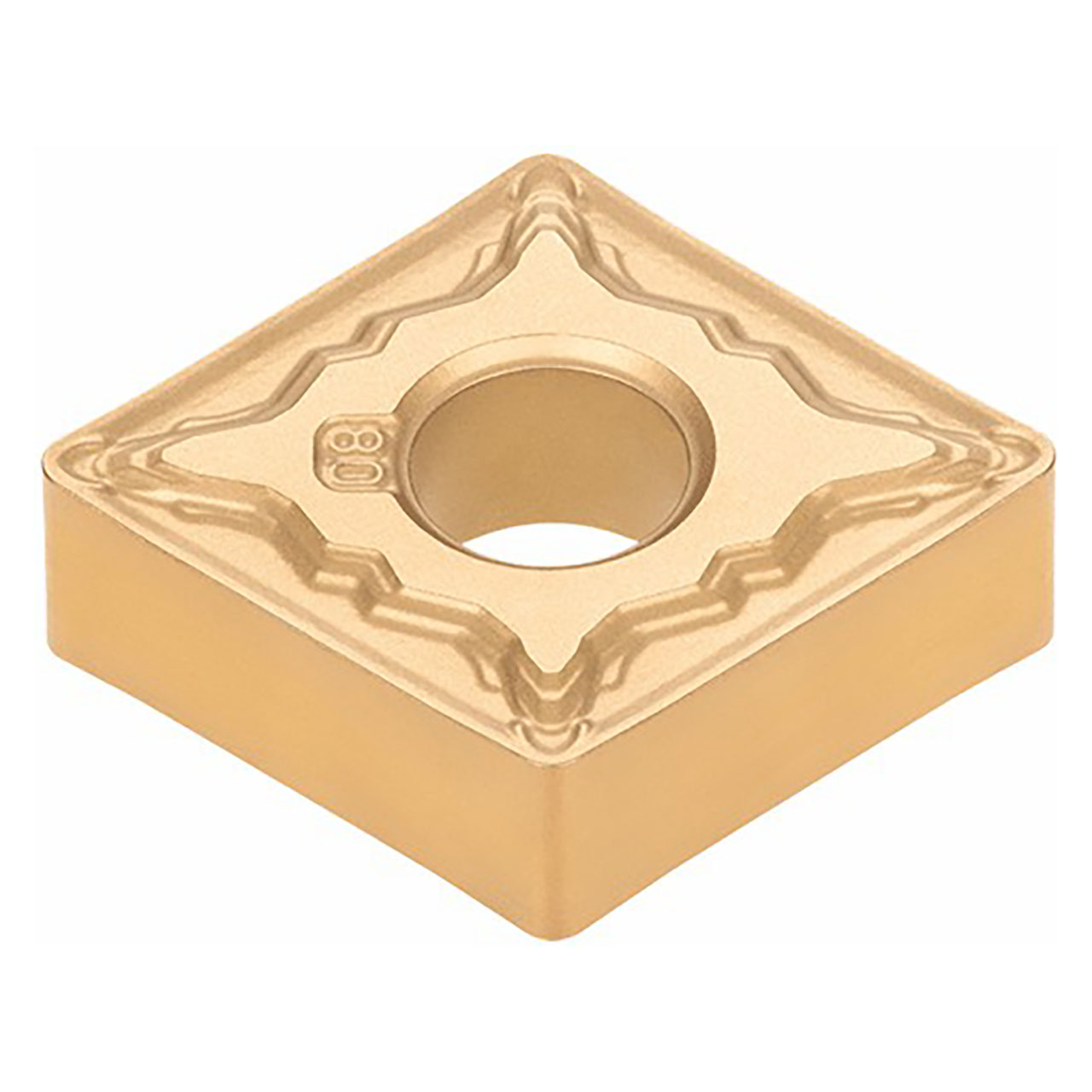

Tungaloy 6772181 | CNMG 432 AM T9215 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$17.15 $12.01
(You save $5.14)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23129345
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Negative relief angle, M class, 80 degree rhombic insert, for high-feed machining in medium of steel.


Product Specifications
# MFG6772181
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.508"
Maximum Depth of Cut (Inch)0.1772"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.059"
Minimum Turning Feed (Inch)0.0079"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT9215
Applicable MaterialSteel
Chip Breaker TypeAM
Body MaterialCarbide
