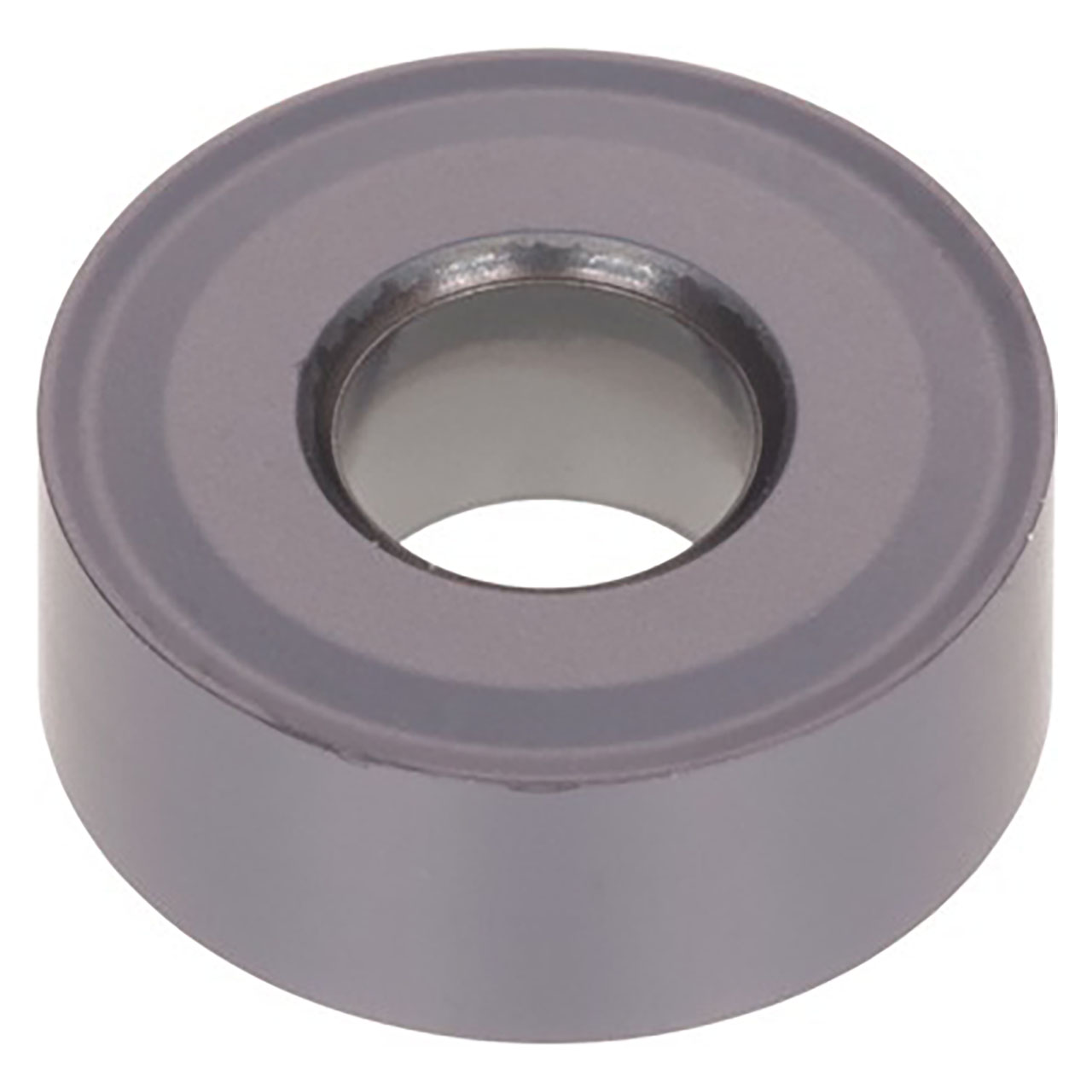

Negative relief angle, M class, round insert, for heavy cutting.
Product Specifications
| # MFG | 6773897 |
| Cutting Edge Length (Inch) | 3/8" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.15" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0748"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0196"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T9215 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | 61 |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Neck Diameter (mm):
7.60mm
Corner Radius (Decimal Inch):
0.1874"
Body Material:
Carbide
Grade:
T9215
Cutting Direction:
Neutral
Maximum Depth of Cut (Decimal Inch):
0.0787"
interval quantity:
10
