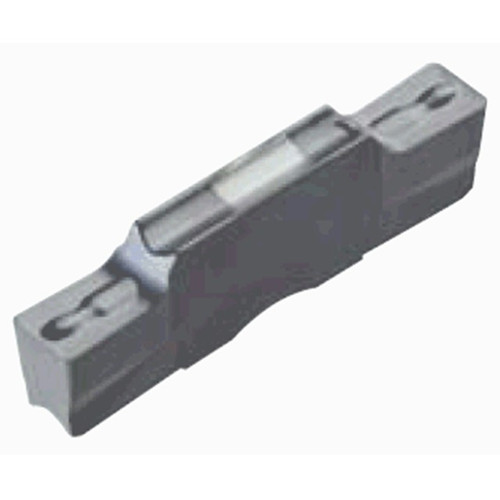

Double-ended inserts, 1st choice for face grooving & turning, tolerance of insert width +-0.002".
Product Specifications
| Manufacturer Part Number | 6774841 |
| Cutting Width (Inch) | 0.118" |
| Corner Radius (Inch) | 0.0157" |
| Maximum Depth of Cut (Inch) | 0.728" |
| Insert Length (Inch) | 0.63" |
| Cutting Direction | Left Hand |
| Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide |
| Tool Type | Face Turn-Groove Inserts |
| Grade | AH7025 |
| Coating | TiAlN |
| Body Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hi Temp Alloys |
| Application | Inserts |
