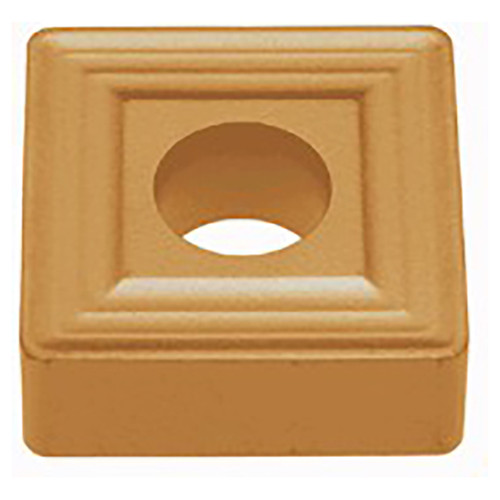

Negative relief angle, M class, square insert, for heavy cutting.
Product Specifications
| # MFG | 6780955 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 3/4" |
| Fixing Hole Diameter (Inch) | 0.312" |
| Inscribed Circle Diameter (Inch) | 3/4" |
| Insert Thickness (Inch) | 1/4" |
| Grade | T9225 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | 57 |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
interval quantity:
10
