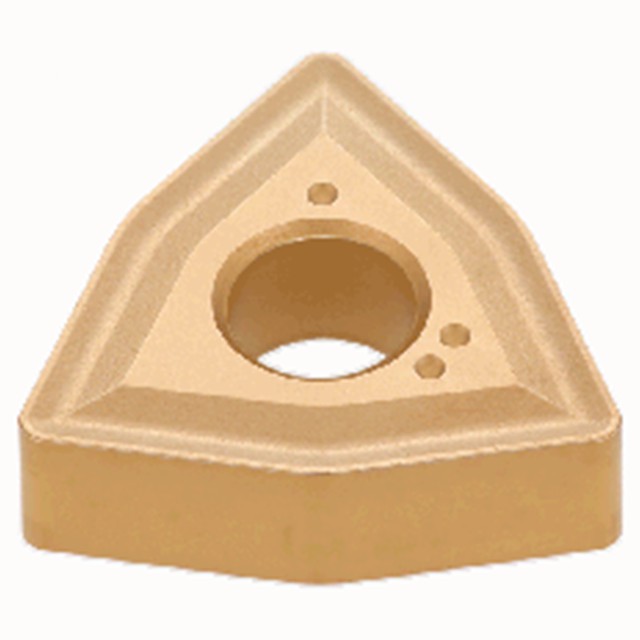

Tungaloy 6780969 | WNMG 331 T9225 3/8" Circle Diameter x 0.187" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$13.55 $9.49
(You save $4.06)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23130843
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, trigon insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6780969
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.256"
Maximum Depth of Cut (Inch)0.1654"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
GradeT9225
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker TypeAR
Body MaterialCarbide
