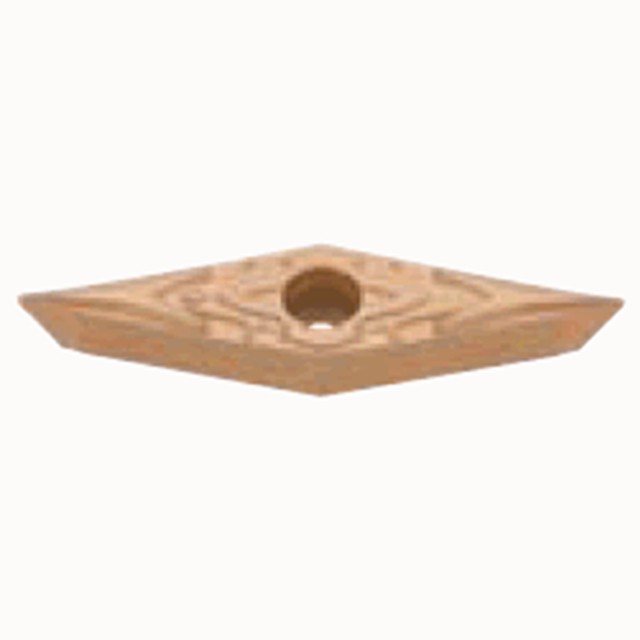

Tungaloy 6781196 | YWMT11T202-ZF T9225 0.184" Circle Diameter x 0.109" Thickness x 0.008" Radius Carbide Indexable Turning Insert

$25.20 $17.64
(You save $7.56)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/16"
Inscribed Circle (Decimal Inch):
0.1840"
Inscribed Circle (mm):
4.67mm
Thickness (Inch):
7/64"
Thickness (Decimal Inch):
0.1090"
Thickness (mm):
2.77mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23131070
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive relief angle, M class, 25 degree rhombic insert, for finishing to medium profiling.


Product Specifications
Manufacturer Part Number6781196
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.437"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.091"
Inscribed Circle Diameter (Inch)0.184"
Insert Thickness (Inch)0.109"
Maximum Turning Feed (Inch)0.0078"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0027"/rev
GradeT9225
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypeY-ZF
Major Clearance Angle7 Degree
Body MaterialCarbide
