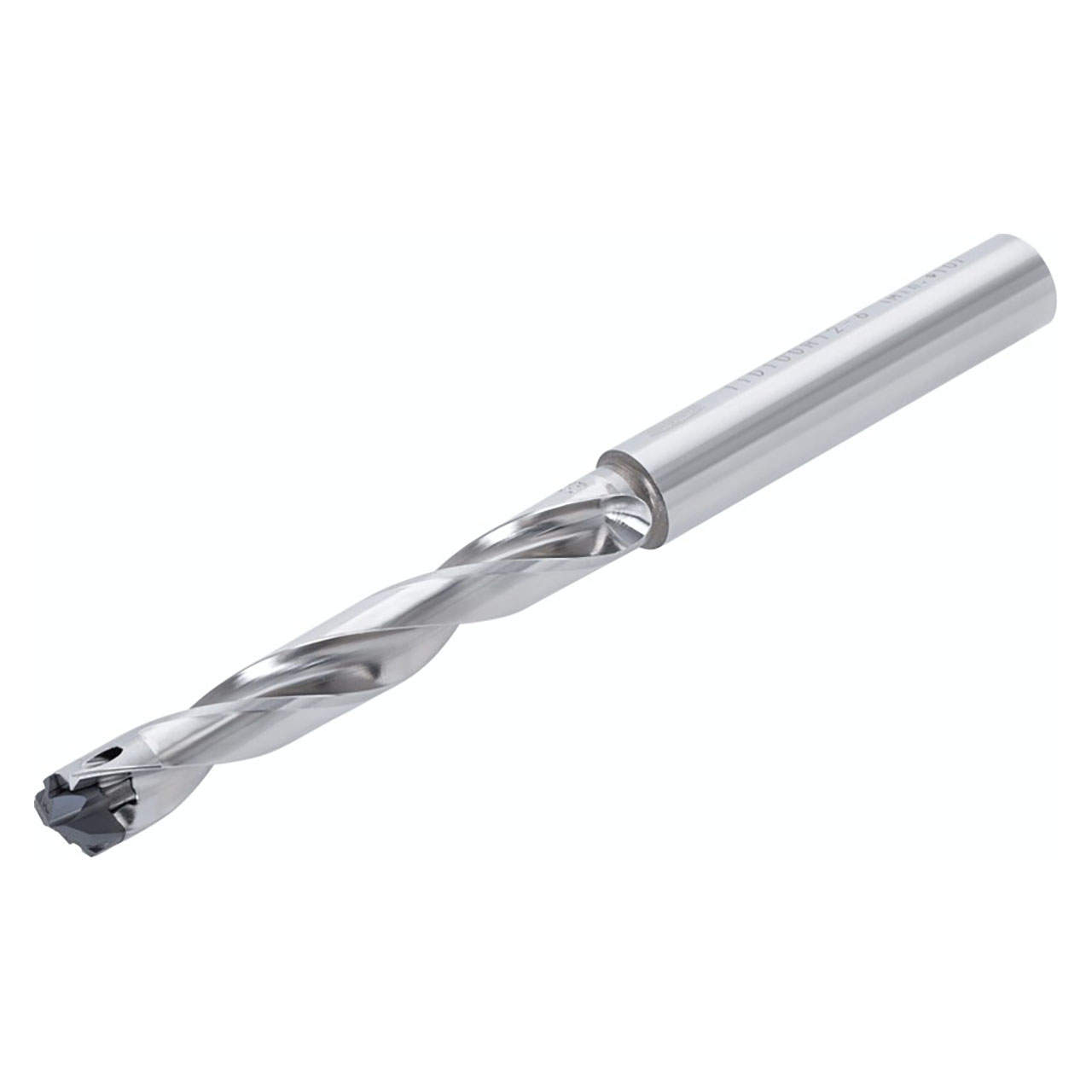

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 16.9 mm |
| Cutting Diameter Minimum (mm.) | 16 mm |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Overall Length (mm) | 196.18mm |
| Point Length (Inch) | 0.058" |
| Shank Length (Inch)) | 1.89" |
| Shank Length (mm) | 3.222" |
| Insert Seat Size Code (SSC) | 10 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.6654"
Minimum Cutting Diameter (Decimal Inch):
0.6299"
Body Material:
Steel
Overall Length (Decimal Inch):
7.7240"
Point Length (Decimal Inch):
0.0950"
Shank Length (Decimal Inch):
2.7560"
Usable Length (Decimal Inch):
4.3310"
