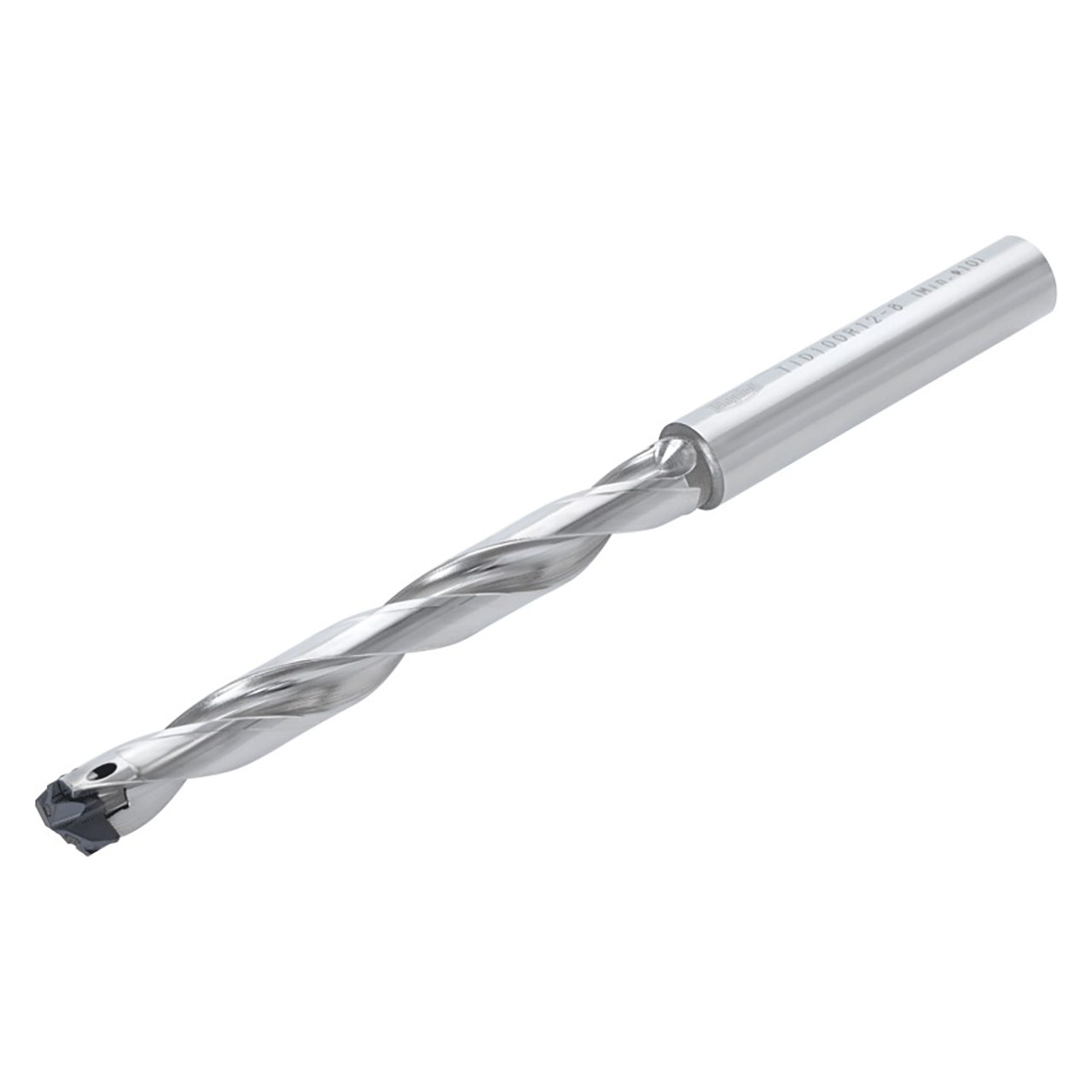

"DrillForceMeister" TIS L/D=5 indexable head drill.
Product Specifications
| Cutting Diameter Maximum (mm) | 7.9 mm |
| Cutting Diameter Minimum (mm.) | 7.5 mm |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Overall Length (mm) | 116.38mm |
| Point Length (Inch) | 0.186" |
| Shank Length (Inch)) | 2.362" |
| Shank Length (mm) | 5.277" |
| Insert Seat Size Code (SSC) | 26 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.3110"
Minimum Cutting Diameter (Decimal Inch):
0.2953"
Body Material:
Steel
Overall Length (Decimal Inch):
4.5820"
Point Length (Decimal Inch):
0.0440"
Shank Length (Decimal Inch):
1.7720"
Usable Length (Decimal Inch):
2.3620"
interval quantity:
1
