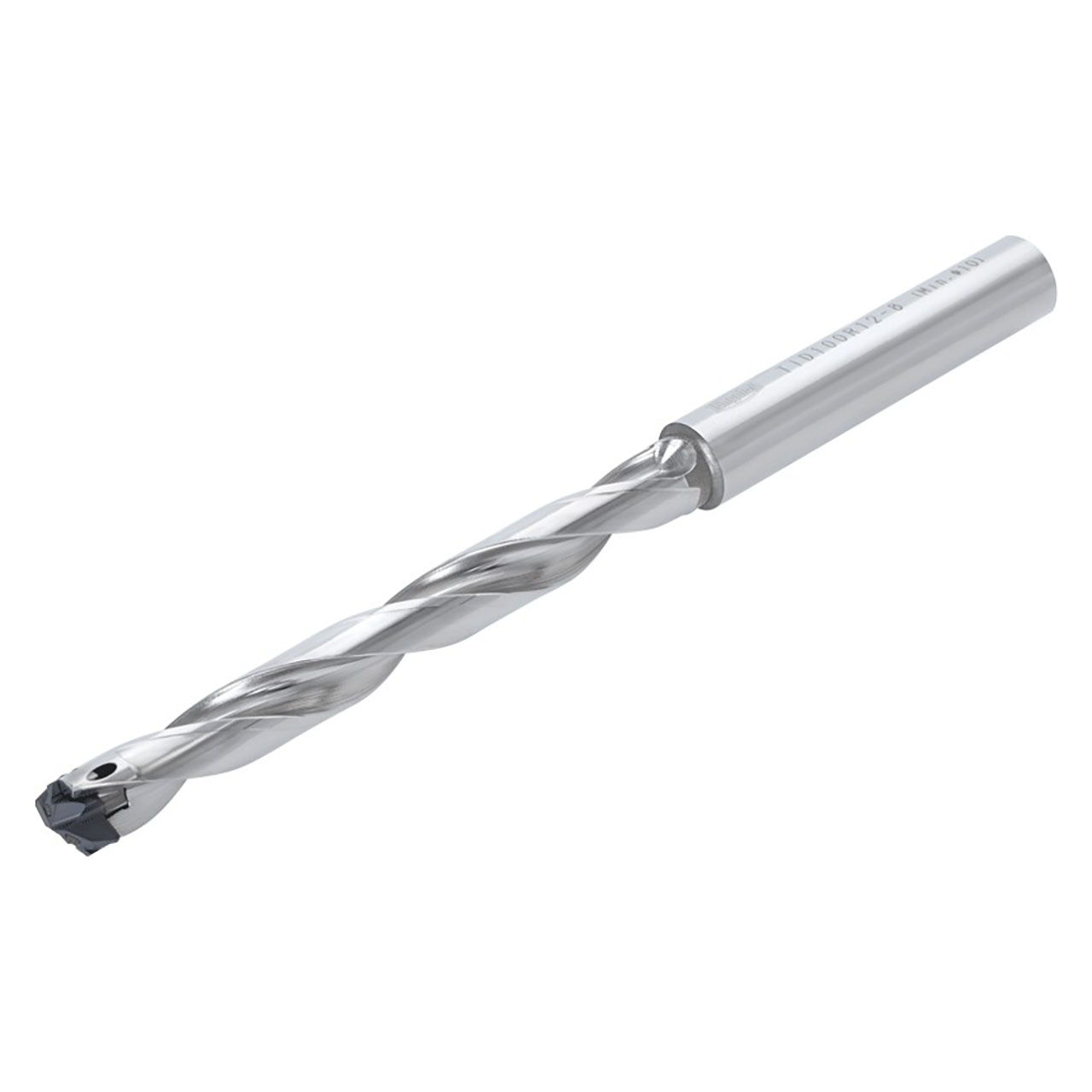

"DrillMeister" TIDCF chamfering adopters.
Product Specifications
| Cutting Diameter Maximum (mm) | 15.9 mm |
| Cutting Diameter Minimum (mm.) | 15 mm |
| Connection Diameter Machine Side (mm) | 32 mm |
| Overall Length (mm) | 219.99mm |
| Shank Length (mm) | 60 mm |
| Insert Seat Size Code (SSC) | XH0903 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | Chamfering |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.6260"
Minimum Cutting Diameter (Decimal Inch):
0.5906"
Body Material:
Steel
Overall Length (Decimal Inch):
8.6610"
Point Length (Decimal Inch):
0.0890"
Shank Length (Decimal Inch):
2.7560"
Usable Length (Decimal Inch):
5.3540"
interval quantity:
1
