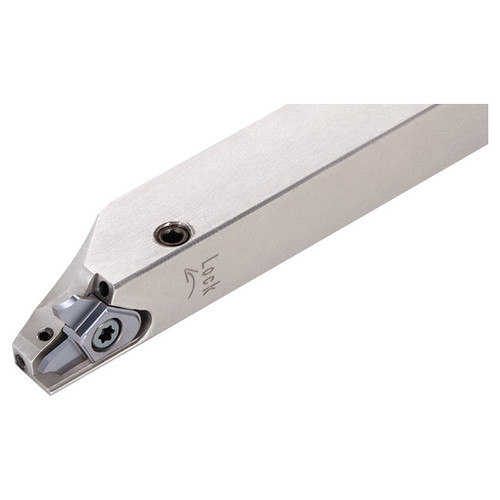

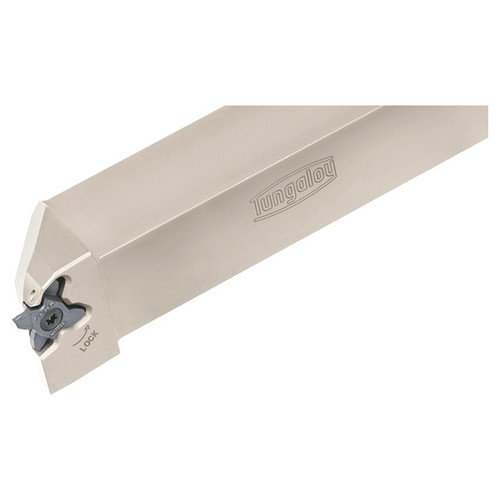

External grooving and threading tools with high pressure coolant channels.
Product Specifications
| Manufacturer Part Number | 6785601 |
| Cutting Width Maximum (Inch) | 0.118" |
| Cutting Width Minimum (Inch) | 0.013" |
| Functional Length (Inch) | 4-3/4" |
| Functional Width (Inch) | 1" |
| Head Length (Inch) | 0.900" |
| Shank Height (Inch) | 3/4" |
| Shank Width (Inch) | 3/4" |
| Cutting Direction | Right Hand |
| Tool Type | Parting & Grooving Tools |
| Application | Ext Threading, External Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/64"
Minimum Groove Width (Decimal Inch):
0.0130"
Minimum Groove Width (mm):
0.33mm
Maximum Groove Width (Inch):
1/8"
Maximum Groove Width (Decimal Inch):
0.1180"
Maximum Groove Width (mm):
3.00mm
Toolholder Type:
External Threading, External Grooving
Shank Height (Inch):
3/4"
Shank Height (Decimal Inch):
0.7500"
Shank Height (mm):
19.05mm
interval quantity:
1
