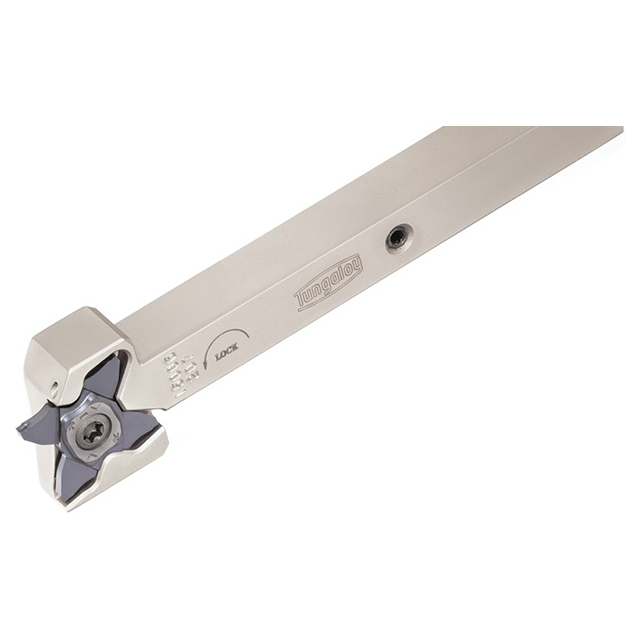

Precision external grooving tools with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose.
Product Specifications
| Manufacturer Part Number | 6785606 |
| Cutting Width Maximum (Inch) | 1/8" |
| Cutting Width Minimum (Inch) | 0.020" |
| Functional Length (Inch) | 4-3/4" |
| Functional Width (Inch) | 0.441" |
| Head Length (Inch) | 0.906" |
| Shank Height (Inch) | 1/2" |
| Shank Width (Inch) | 1/2" |
| Cutting Direction | Left Hand |
| Tool Type | Parting & Grooving Tools |
| Application | External Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/64"
Minimum Groove Width (Decimal Inch):
0.0200"
Minimum Groove Width (mm):
0.51mm
Maximum Groove Width (Inch):
1/8"
Maximum Groove Width (Decimal Inch):
0.1300"
Maximum Groove Width (mm):
3.18mm
Toolholder Type:
External Grooving
Shank Height (Inch):
1/2"
Shank Height (Decimal Inch):
0.5000"
Shank Height (mm):
12.70mm
interval quantity:
1
