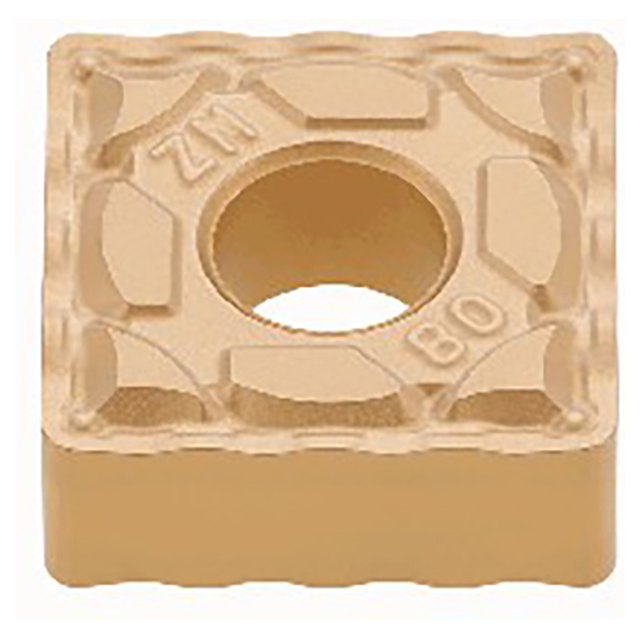

Tungaloy 6785992 | SNMG 433 ZM T9235 1/2" Circle Diameter x 0.187" Thickness x 0.047" Radius Carbide Indexable Turning Insert

$18.45 $11.99
(You save $6.46)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
interval quantity:
10
SKU:
23131913
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, square insert, for finishing to medium cutting.


Product Specifications
# MFG6785992
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)1/2"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0197"/rev
Minimum Depth of Cut (Inch)0.0275"
Minimum Turning Feed (Inch)0.0079"/rev
GradeT9235
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker TypeZM
Body MaterialCarbide
