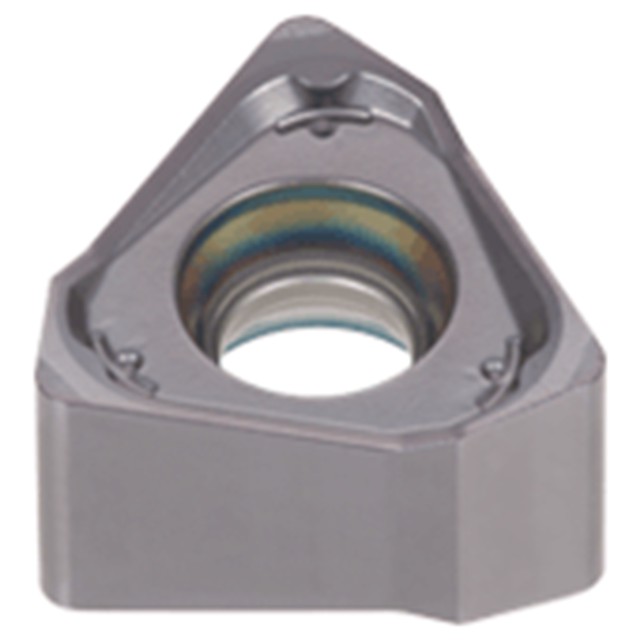

Tungaloy 6787136 | WNGU060304TN-MJ AH3135 0.240" Diameter x 0.173" Thickness x 0.016" Radius TiAlN Coated Carbide Milling Insert

$37.05 $30.75
(You save $6.30)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
15/64"
Inscribed Circle (Decimal Inch):
0.2400"
Inscribed Circle (mm):
6.10mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1730"
Thickness (mm):
4.39mm
SKU:
23132056
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Inserts for slot milling cutters.


Product Specifications
Manufacturer Part Number6787136
Cutting Edge Effective Length (Inch)0.22"
Corner Radius (Inch)0.0157"
Inscribed Circle Diameter (Inch)0.24"
Insert Thickness (Inch)0.173"
Number of Cutting Edges6
ApplicationSlot Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH3135
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Hard Materials, Hi Temp Alloys
