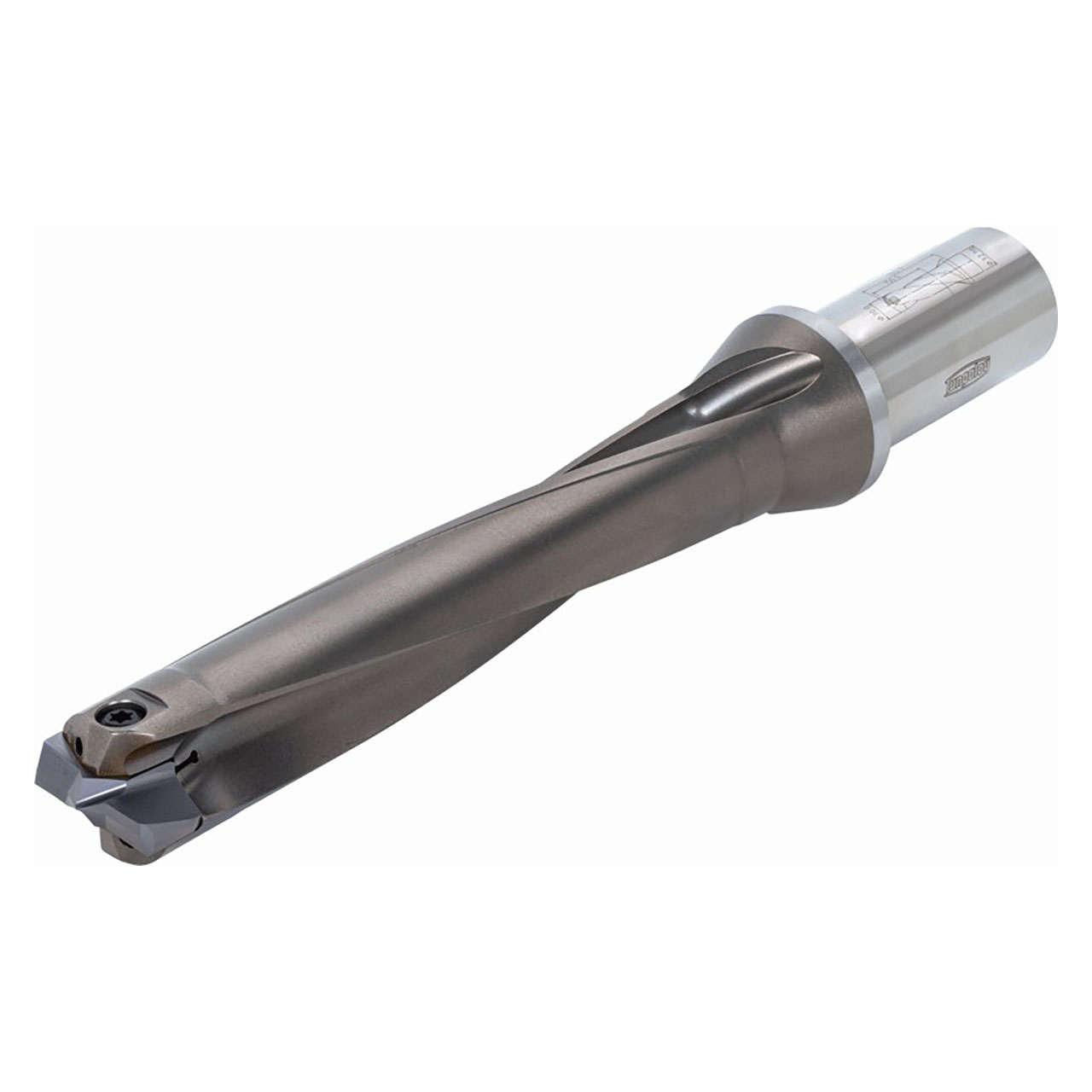

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 22.9 mm |
| Cutting Diameter Minimum (mm.) | 22 mm |
| Flange Diameter (mm) | 32 mm |
| Connection Diameter Machine Side (mm) | 16 mm |
| Overall Length (mm) | 198.40mm |
| Point Length (mm) | 1.47 mm |
| Shank Length (mm) | 48 mm |
| Usable Length (mm) | 82 mm |
| Insert Seat Size Code (SSC) | 10 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
22.90mm
Minimum Cutting Diameter (mm):
22.00mm
Flange Diameter (mm):
32.00mm
Body Material:
Steel
Overall Length (mm):
198.40mm
Point Length (mm):
3.42mm
Shank Length (mm):
56.00mm
Usable Length (mm):
113.40mm
