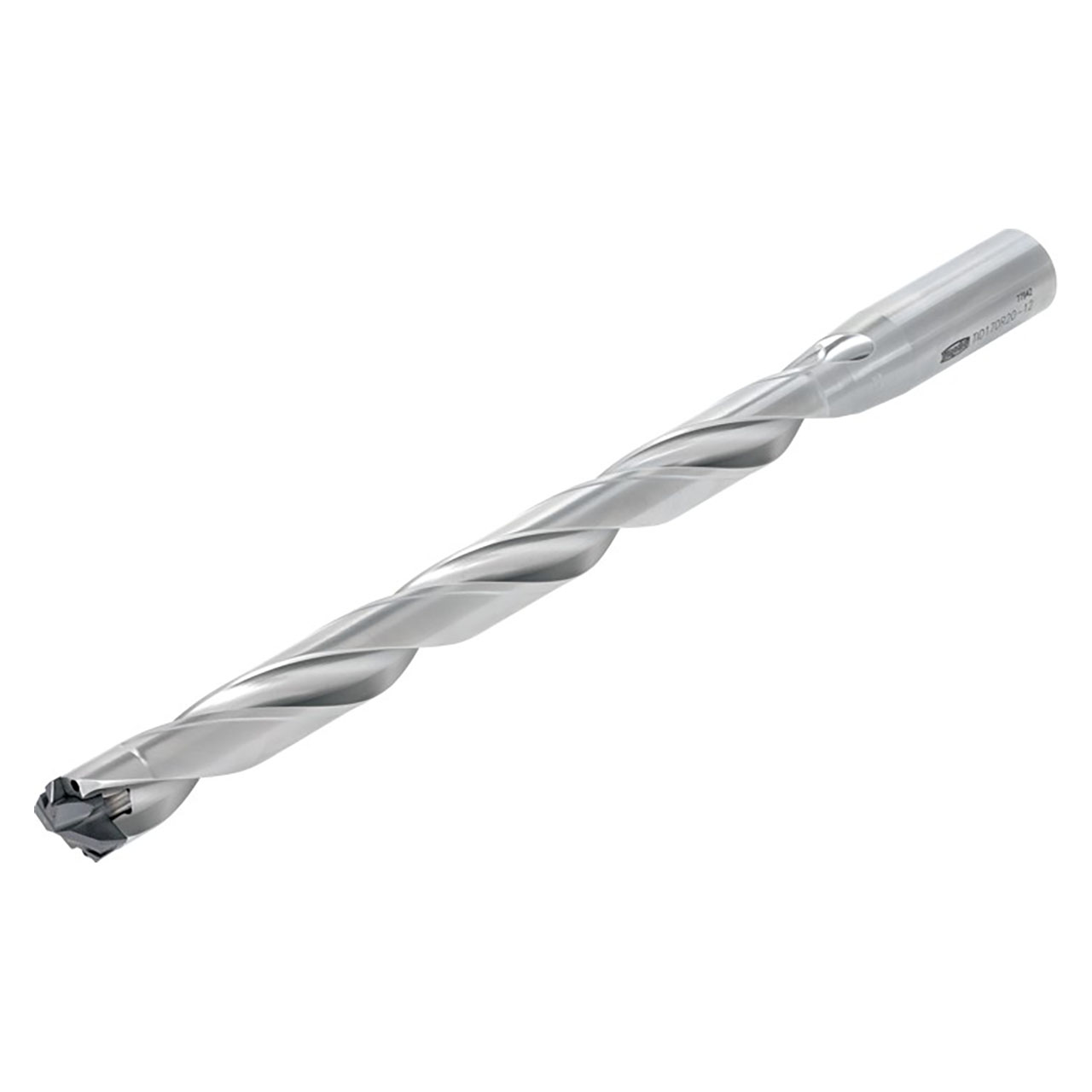

"DrillForceMeister" TIS L/D=5 indexable head drill.
Product Specifications
| Cutting Diameter Maximum (mm) | 24.9 mm |
| Cutting Diameter Minimum (mm.) | 24 mm |
| Connection Diameter Machine Side (mm) | 32 mm |
| Overall Length (mm) | 385.70mm |
| Point Length (mm) | 3.91 mm |
| Shank Length (mm) | 60 mm |
| Usable Length (mm) | 128.9 mm |
| Insert Seat Size Code (SSC) | 25 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.9803"
Minimum Cutting Diameter (Decimal Inch):
0.9449"
Body Material:
Steel
Overall Length (Decimal Inch):
15.185"
Point Length (Decimal Inch):
0.1430"
Shank Length (Decimal Inch):
2.3620"
Usable Length (Decimal Inch):
11.339"
