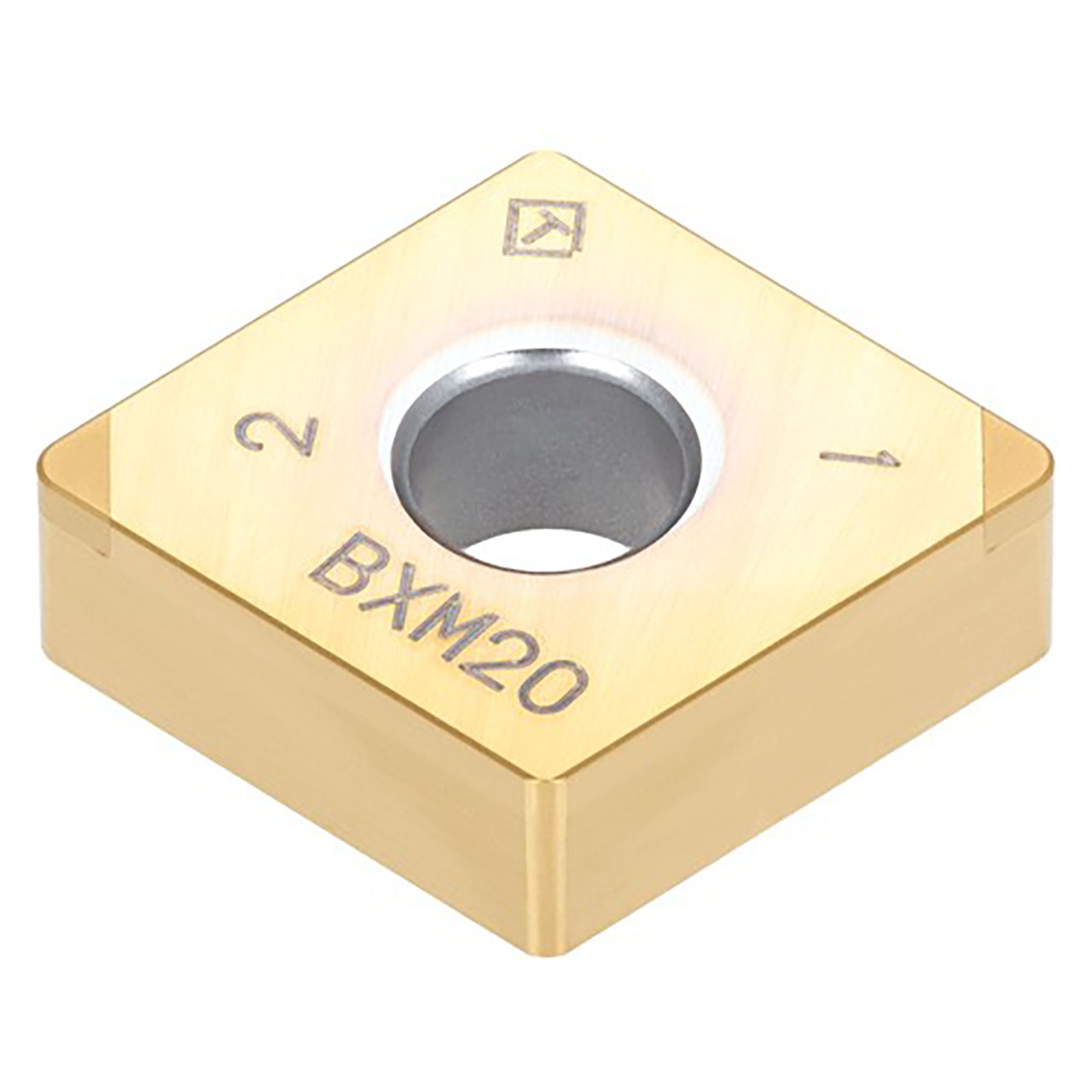

Tungaloy 6791042 | 2QP-CNGA 430.5 BXA20 1/2" Circle Diameter x 0.187" Thickness x 0.008" Radius Polycrystalline Cubic Boron Nitride Indexable Turning Insert

$78.45 $72.17
(You save $6.28)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0080"
interval quantity:
1
SKU:
23132328
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Negative relief angle, M/G class, 80 degree rhombic CBN insert.


Product Specifications
# MFG6791042
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.508"
Cutting Edge Effective Length (Inch)0.091"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.002"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialPCBN
GradeBXA20
Tool TypeTurn Negative Inserts
Applicable MaterialHard Materials
Chip Breaker TypeFT-CBN
Body MaterialCarbide
