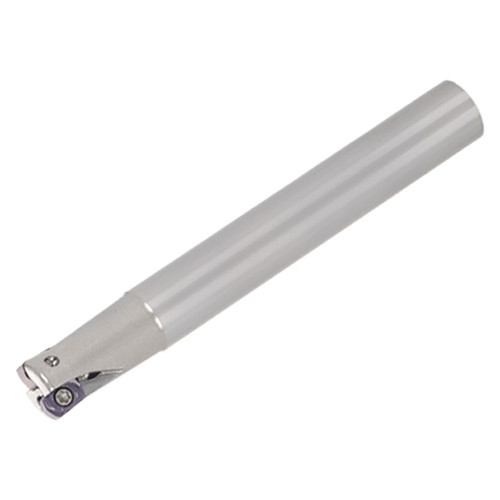

High feed milling endmills with LSMT inserts.
Product Specifications
| # MFG | 6791588 |
| Connection Diameter Machine Side (mm) | 25mm |
| Cutting Diameter (mm) | 21.31mm |
| Cutting Item Count | 8 |
| Maximum Cutting Diameter (mm) | 25mm |
| Maximum Depth of Cut (mm) | 0.5mm |
| Functional Length (mm) | 140mm |
| Head Length (mm) | 60mm |
| Overall Length (mm) | 140mm |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Tool Type | Cutter-Shank Type |
