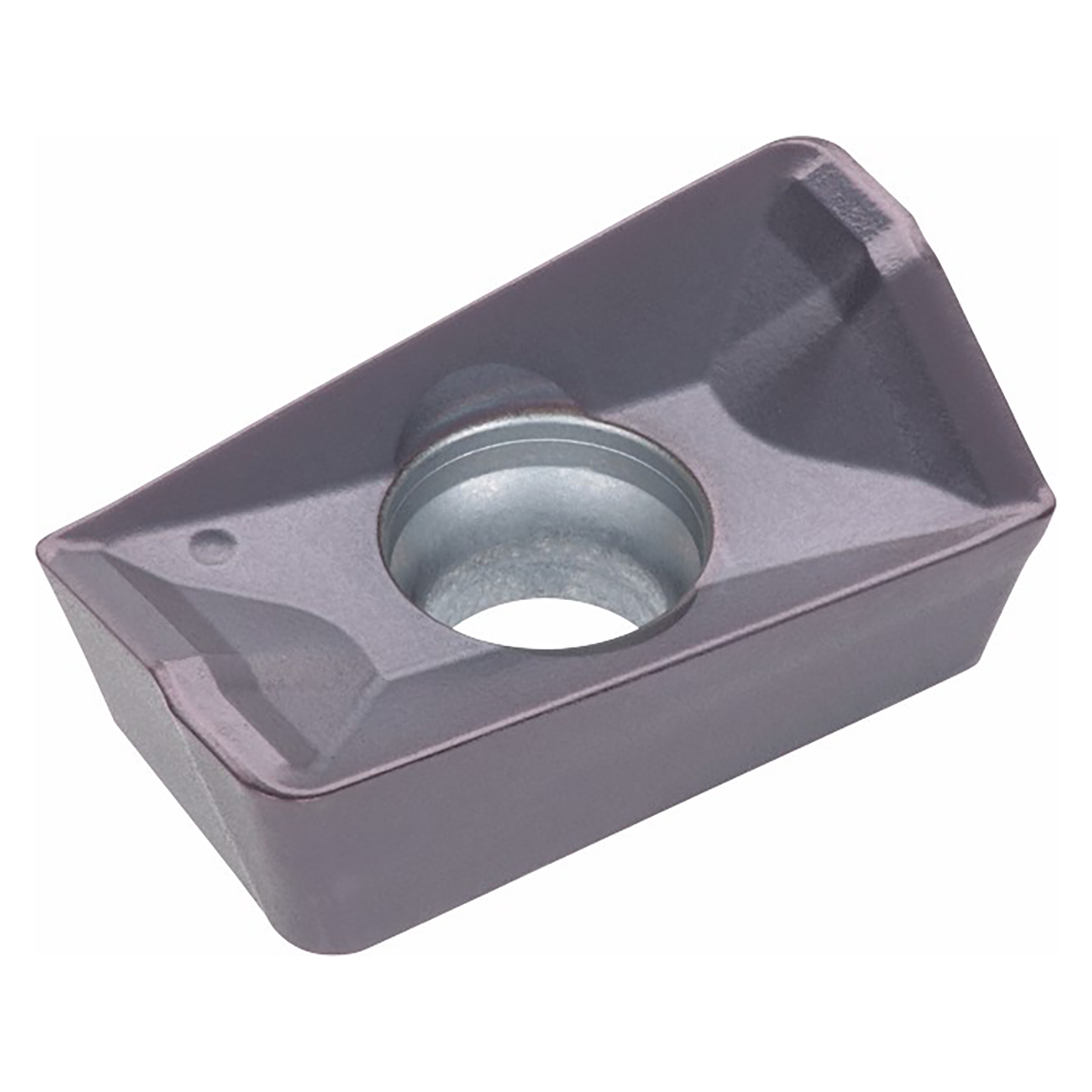

Tungaloy 6794832 | ASMT11T312PDPR-MJ AH3225 0.264" Diameter x 0.146" Thickness x 0.047" Radius Carbide Milling Insert

$20.20 $16.77
(You save $3.43)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Width (Inch):
17/64"
Width (Decimal Inch):
0.2640"
Width (mm):
6.71mm
Length (Inch):
31/64"
Length (Decimal Inch):
0.4840"
Length (mm):
12.29mm
Inscribed Circle (Inch):
17/64"
Inscribed Circle (Decimal Inch):
0.2640"
Inscribed Circle (mm):
6.71mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1460"
Thickness (mm):
3.71mm
interval quantity:
10
SKU:
23155905
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

High performance insert with MJ chipbreaker for general purpose.


Product Specifications
# MFG6794832
Corner Radius (Inch)0.0472"
Depth of Cut Maximum (Inch)0.417"
Inscribed Circle Diameter (Inch)0.264"
Insert Length (Inch)0.484"
Insert Thickness (Inch)0.146"
Insert Width (Inch)0.264"
Maximum Feed per Tooth0.0039"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges2
Wiper Edge Length0.039"
ApplicationShoulder Milling
Body MaterialCarbide
GradeAH3225
Applicable MaterialSteel, Stainless Steel
