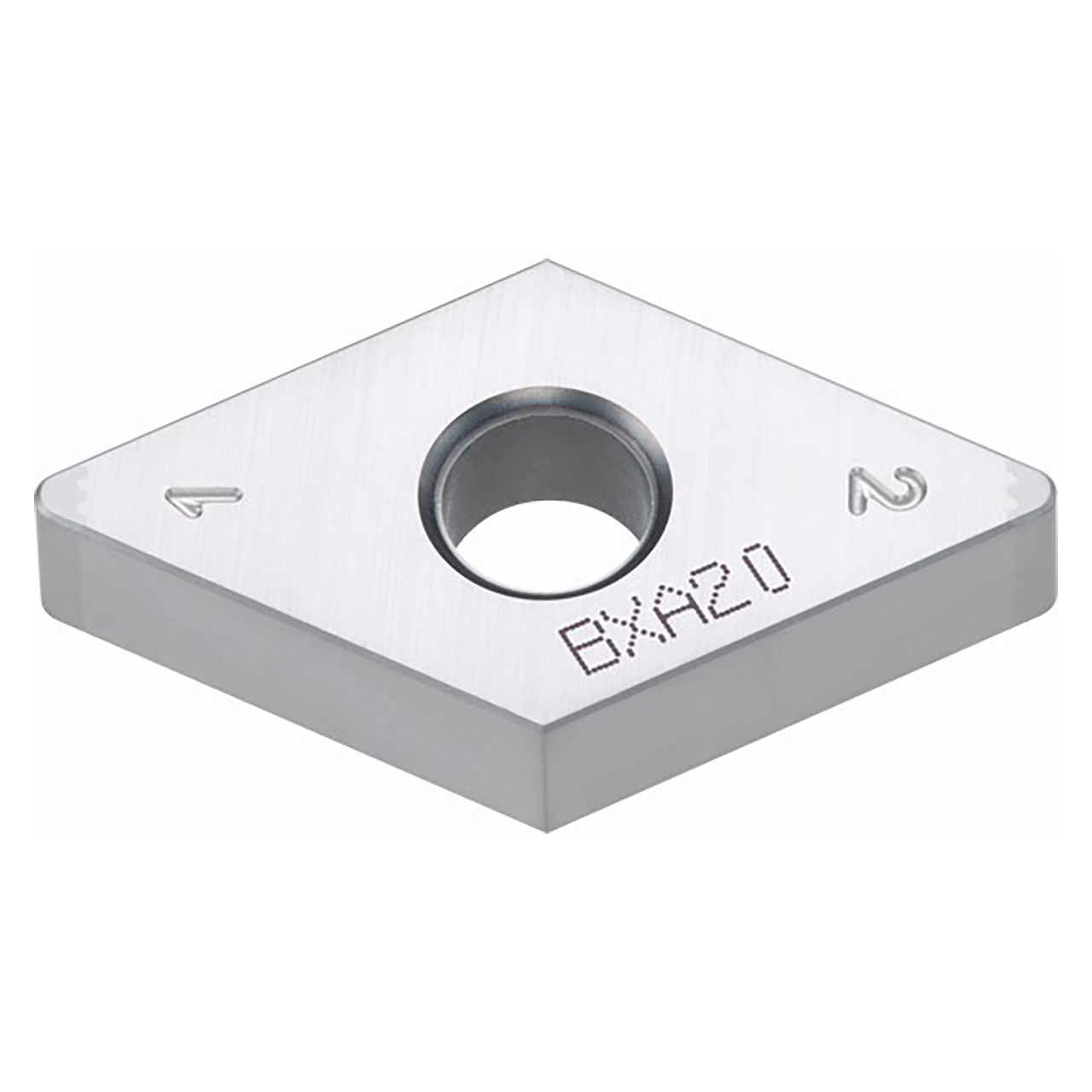

Negative relief angle, G class, 55 degree rhombic CBN insert, applied "WavyJoint" brazing technology.
Product Specifications
| # MFG | 6795144 |
| Corner Radius (Inch) | 0.0157" |
| Cutting Edge Length (Inch) | 0.61" |
| Cutting Edge Effective Length (Inch) | 0.079" |
| Maximum Depth of Cut (Inch) | 0.0315" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.002" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Grade | BXA10 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Hard Materials |
| Chip Breaker Type | FT-Wavy |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
0.40mm
