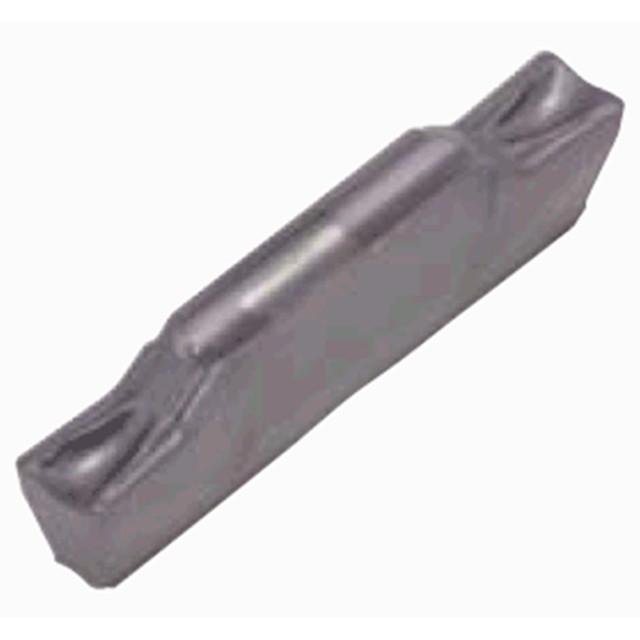

Double-ended inserts for external, internal, face grooving & turning, tolerance of insert width +-0.002".
Product Specifications
| Manufacturer Part Number | 6795880 |
| Cutting Width (Inch) | 0.236" |
| Corner Radius (Inch) | 0.0315" |
| Maximum Depth of Cut (Inch) | 0.925" |
| Cutting Direction | Neutral |
| Number of Cutting Edges | 2 |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Utility Inserts |
| Grade | AH8005 |
| Coating | TiAlN |
| Body Material | Carbide |
| Applicable Material | Hard Materials, Hi Temp Alloys |
| Application | Inserts |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (Decimal Inch):
0.0315"
Finish/Coating:
AlTiN
Body Material:
Carbide
Grade:
AH8005
Cutting Depth (Decimal Inch):
0.9250"
Cutting Direction:
Neutral
Cutting Width (Decimal Inch):
0.2360"
