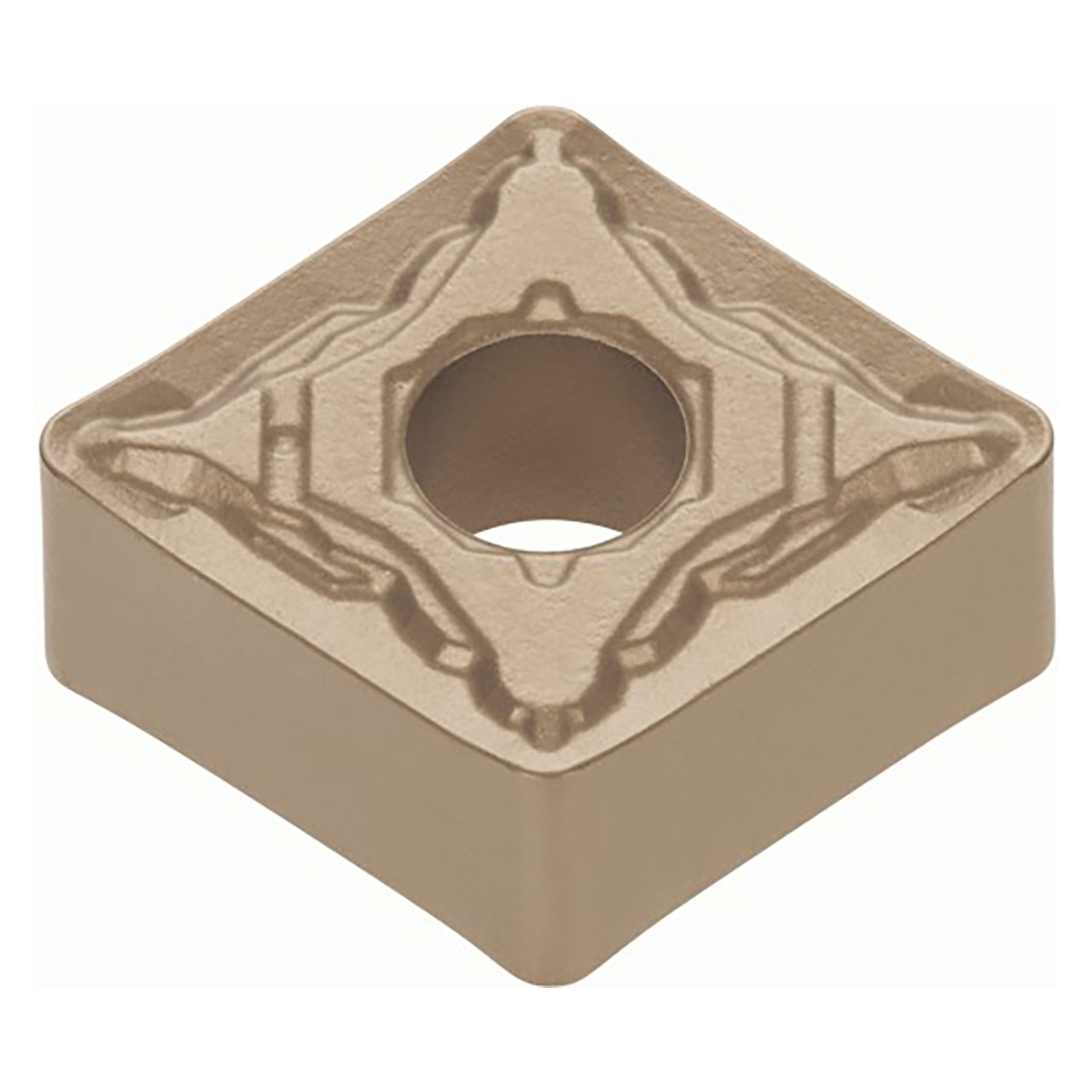

Negative relief angle, M class, 80 degree rhombic insert, for finishing.
Product Specifications
| # MFG | 6797228 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.382" |
| Maximum Depth of Cut (Inch) | 0.059" |
| Fixing Hole Diameter (Inch) | 0.15" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0157"/rev |
| Minimum Depth of Cut (Inch) | 0.0079" |
| Minimum Turning Feed (Inch) | 0.0012"/rev |
| Coating | TiCNO |
| Cutting Edge Material | Cermet |
| Grade | GT9530 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | TSF |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
