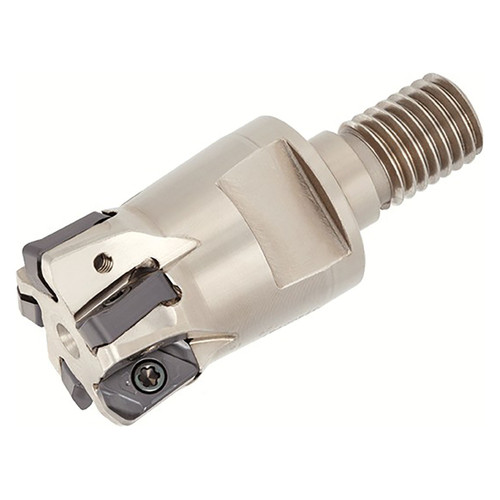

High feed milling endmill, modular type (TungFlex), with 6-corner double sided inserts.
Product Specifications
| # MFG | 6798863 |
| Connection Retention Knob Thread Size | M16 |
| Cutting Diameter (mm) | 24.7mm |
| Cutting Item Count | 5 |
| Maximum Cutting Diameter (mm) | 32mm |
| Maximum Depth of Cut (mm) | 1mm |
| Functional Length (mm) | 40mm |
| Overall Length (mm) | 63mm |
| Shank Height (mm) | 22mm |
| Tool Cutting Edge Angle (Degree) | 12 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling |
| Tool Type | 90 Indexable Endmills |
