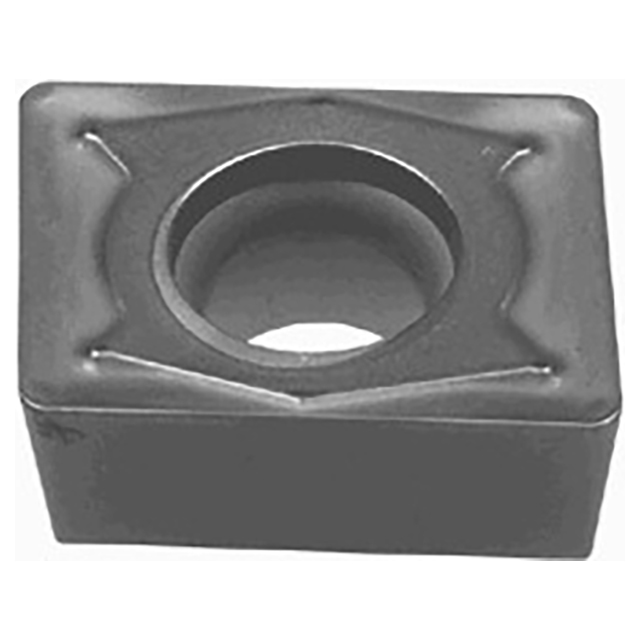

For end cutting edge.
Product Specifications
| # MFG | 6800880 |
| Cutting Edge Effective Length (Inch) | 1/2" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.461" |
| Insert Thickness (Inch) | 0.187" |
| Insert Width (Inch) | 0.394" |
| Number of Cutting Edges | 2 |
| Application | Shoulder Milling |
| Coating | TiCNO |
| Body Material | Carbide |
| Grade | GH330 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
GH330
Finish/Coating:
TiCNO
Width (Inch):
25/64"
Width (Decimal Inch):
0.3940"
Width (mm):
10.01mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
