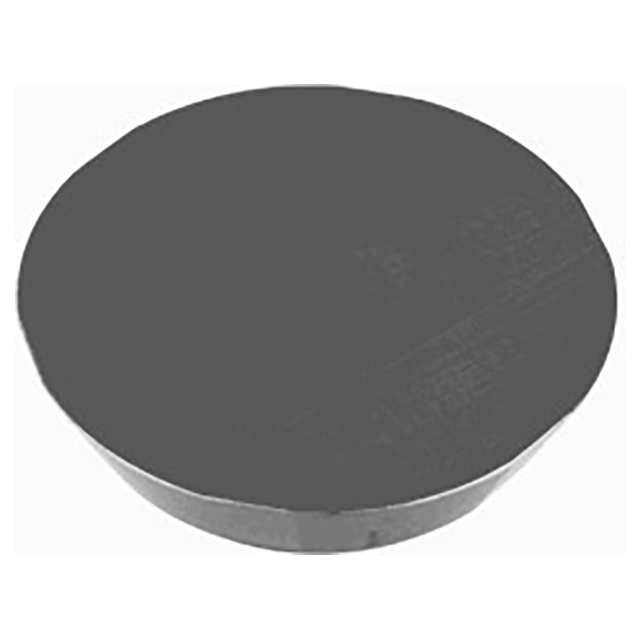

Flat-top button insert with 25 degree relief angle.
Product Specifications
| # MFG | 6805889 |
| Depth of Cut Maximum (Inch) | 0.118" |
| Insert Length (Inch) | 0.787" |
| Insert Thickness (Inch) | 0.187" |
| Number of Cutting Edges | 6 |
| Wiper Edge Length | 0.11" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Length (Inch):
25/32"
Length (Decimal Inch):
0.7870"
Length (mm):
19.99mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
interval quantity:
10
