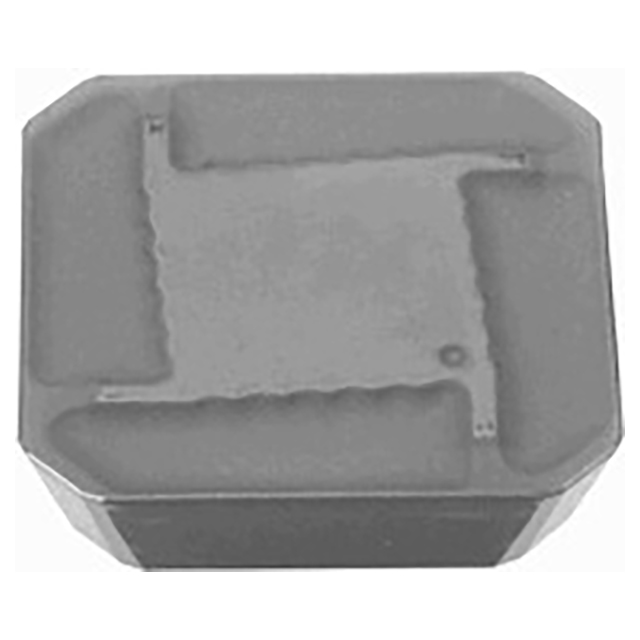

Square insert with 15 degree relief angle and MJ chipbreaker, for 45 degree corner angle and large depth of cut.
Product Specifications
| # MFG | 6806245 |
| Depth of Cut Maximum (mm) | 6mm |
| Insert Thickness (mm) | 4.76mm |
| Insert Width (mm) | 15.875mm |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 2mm |
| Application | Face Milling |
| Coating | TiCNO |
| Body Material | Carbide |
| Grade | GH330 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
GH330
Finish/Coating:
TiCNO
Width (Inch):
5/8"
Width (Decimal Inch):
0.6248"
Width (mm):
15.87mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
interval quantity:
10
