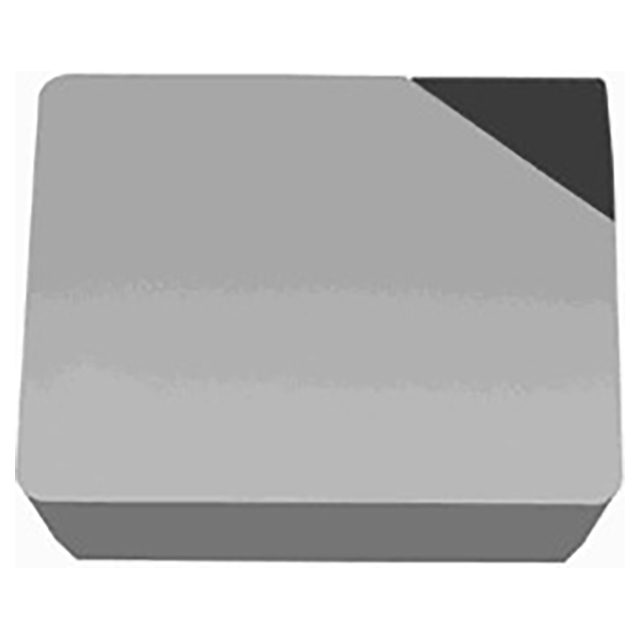

Positive 20 degree relief angle, C class, square PCD insert for THE4000IA AND QHE4000 milling cutter.
Product Specifications
| # MFG | 6806295 |
| Cutting Edge Effective Length (mm) | 12.7mm |
| Depth of Cut Maximum (mm) | 3mm |
| Insert Thickness (mm) | 3.18mm |
| Insert Width (mm) | 12.7mm |
| Number of Cutting Edges | 1 |
| Wiper Edge Length | 2.5mm |
| Application | Face Milling |
| Body Material | Carbide |
| Grade | DX140 |
| Cutting Edge Material | PCD |
| Applicable Material | Non Ferrous Metals |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DX140
Width (Inch):
1/2"
Width (Decimal Inch):
0.5000"
Width (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1251"
Thickness (mm):
3.18mm
