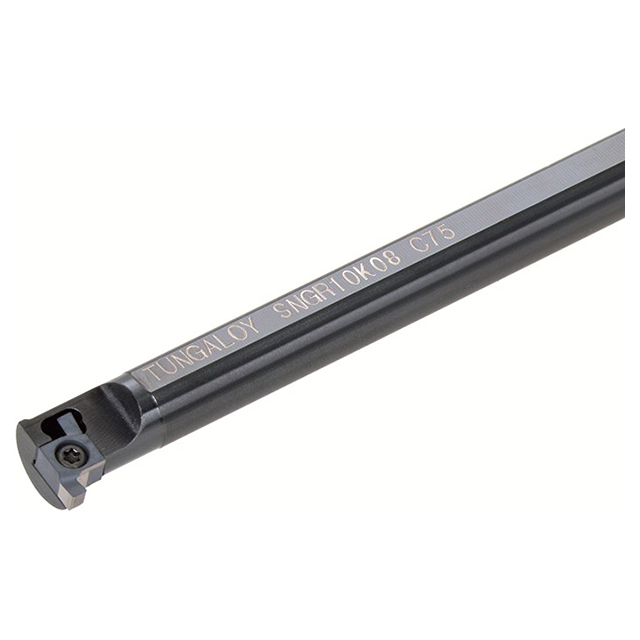

Toolholders for internal grooving.
Product Specifications
| Manufacturer Part Number | 6806540 |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Cutting Width Maximum (mm) | 2.00mm |
| Cutting Width Minimum (mm) | 1.00mm |
| Functional Length (mm) | 125.00mm |
| Functional Width (mm) | 5.8mm |
| Head Length (mm) | 35.00mm |
| Minimum Bore Diameter (mm) | 10.00mm |
| Shank Height (mm) | 7.00mm |
| Cutting Direction | Left Hand |
| Tool Type | Indexable Turn & Groove Tools |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
3/64"
Minimum Groove Width (Decimal Inch):
0.0400"
Minimum Groove Width (mm):
1.00mm
Maximum Groove Width (Inch):
5/64"
Maximum Groove Width (Decimal Inch):
0.0800"
Maximum Groove Width (mm):
2.00mm
Toolholder Type:
Internal Grooving
Shank Height (Inch):
9/32"
Shank Height (Decimal Inch):
0.2800"
Shank Height (mm):
7.00mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3100"
Shank Diameter (mm):
8.00mm
interval quantity:
1
