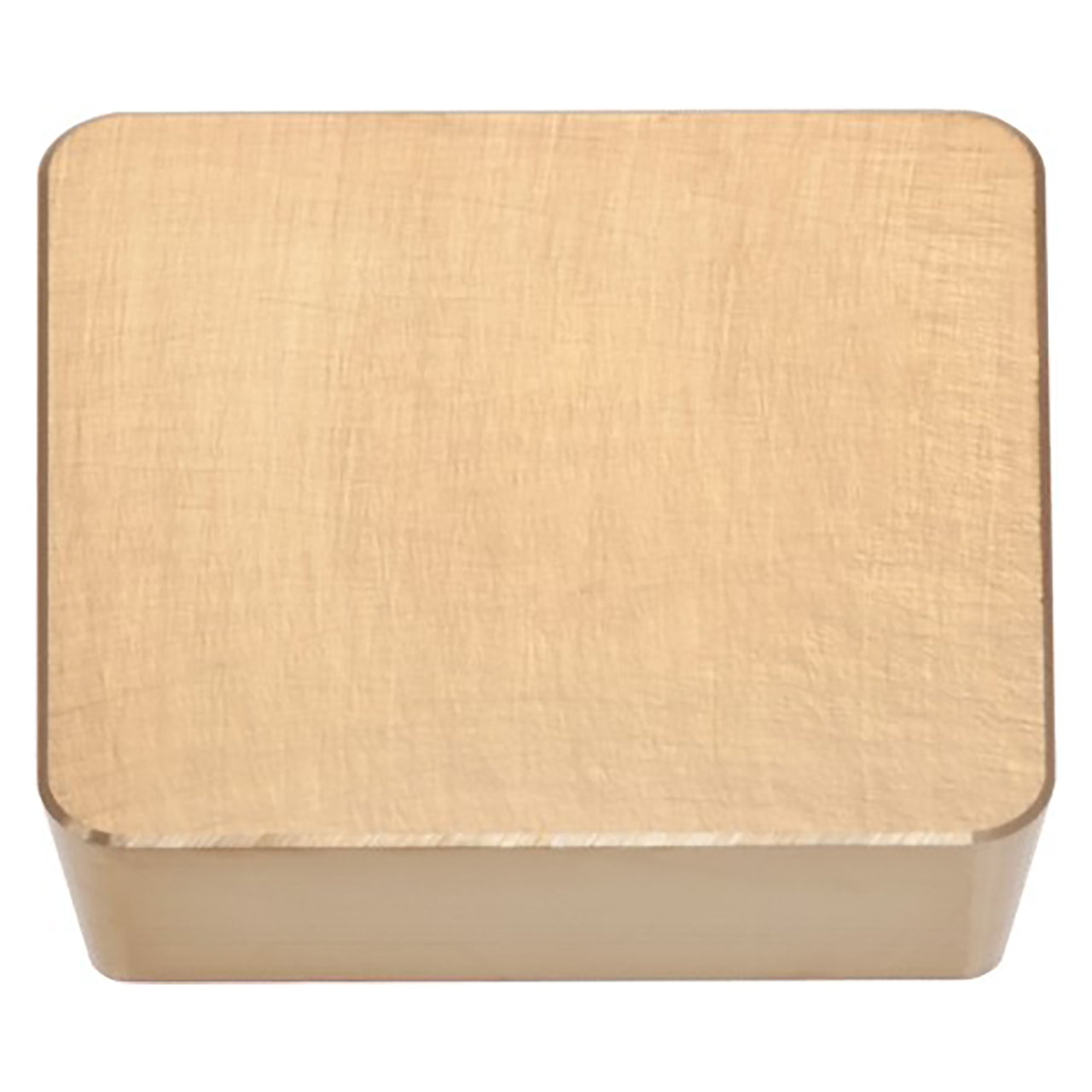

Tungaloy 6807171 | SPMN 422 UX30 1/2" Circle Diameter x 1/8" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$9.20 $6.44
(You save $2.76)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
interval quantity:
10
SKU:
23023981
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, square insert, without chipbreaker for finishing to medium cutting.


Product Specifications
# MFG6807171
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)1/2"
Maximum Depth of Cut (Inch)0.0787"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0039"
Minimum Turning Feed (Inch)0.002"/rev
Cutting Edge MaterialCarbide
GradeUX30
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker TypeFT
Major Clearance Angle11 Degree
Body MaterialCarbide
