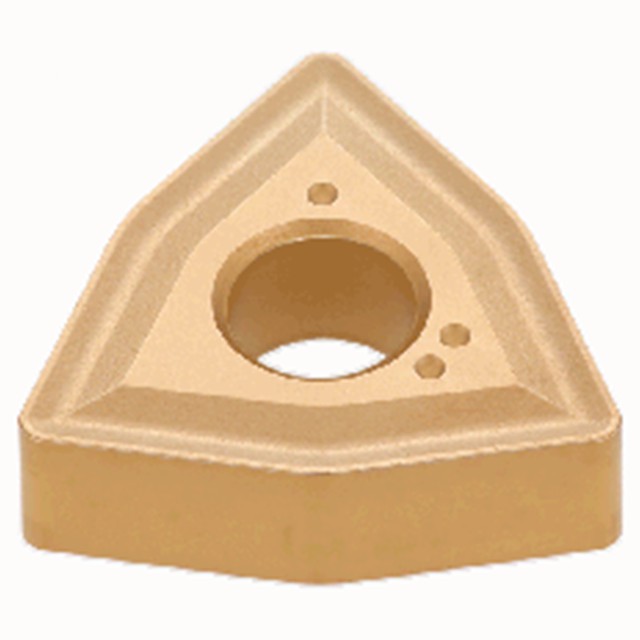

Tungaloy 6809675 | WNMG 432 TH10 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius Carbide Indexable Turning Insert

$11.50 $8.05
(You save $3.45)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23134728
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, trigon insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6809675
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.343"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
Cutting Edge MaterialCarbide
GradeTH10
Tool TypeTurn Negative Inserts
Applicable MaterialCast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys
Chip Breaker TypeAR
Body MaterialCarbide
