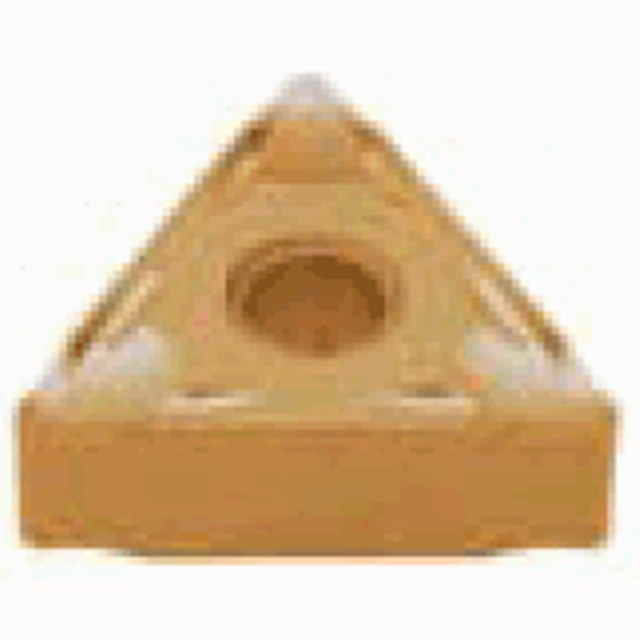

Tungaloy 6814923 | TNMG 332 SS AH120 3/8" Circle Diameter x 0.187" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$11.90 $8.33
(You save $3.57)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23135227
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, for finishing of stainless steel etc.


Product Specifications
Manufacturer Part Number6814923
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.65"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.15"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0031"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH120
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
Chip Breaker TypeSS
Major Clearance Angle6 Degree
Body MaterialCarbide
