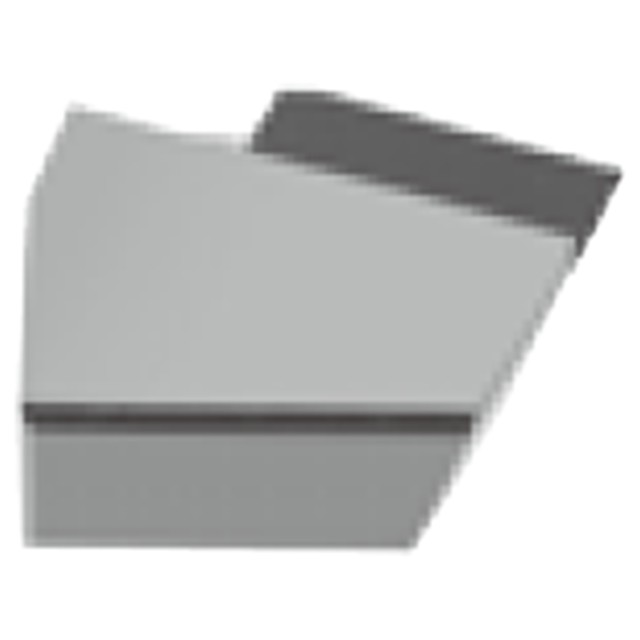

PCD insert for DPD24 milling cutter.
Product Specifications
| Manufacturer Part Number | 6816839 |
| Depth of Cut Maximum (mm) | 7mm |
| Insert Length (mm) | 16.24mm |
| Insert Thickness (mm) | 5.6mm |
| Insert Width (mm) | 12.4mm |
| Number of Cutting Edges | 1 |
| Wiper Edge Length | 1mm |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | DX140 |
| Cutting Edge Material | PCD |
| Applicable Material | Non Ferrous Metals |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DX140
Width (Inch):
31/64"
Width (Decimal Inch):
0.4881"
Width (mm):
12.40mm
Length (Inch):
41/64"
Length (Decimal Inch):
0.6393"
Length (mm):
16.24mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2204"
Thickness (mm):
5.60mm
