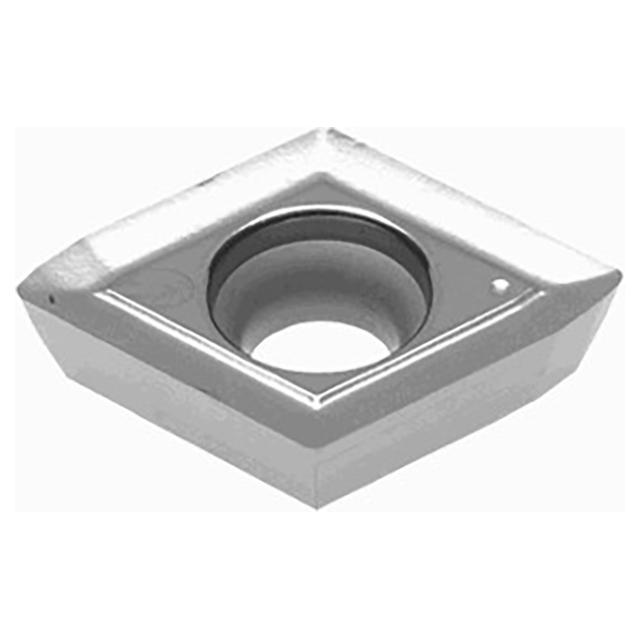

Highly precious ground insert for aluminum machining.
Product Specifications
| # MFG | 6816873 |
| Cutting Edge Effective Length (Inch) | 0.394" |
| Corner Radius (Inch) | 0.0157" |
| Depth of Cut Maximum (Inch) | 0.354" |
| Insert Thickness (Inch) | 0.138" |
| Insert Width (Inch) | 0.394" |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.047" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
TH10
Width (Inch):
25/64"
Width (Decimal Inch):
0.3940"
Width (mm):
10.01mm
Thickness (Inch):
9/64"
Thickness (Decimal Inch):
0.1380"
Thickness (mm):
3.51mm
interval quantity:
10
