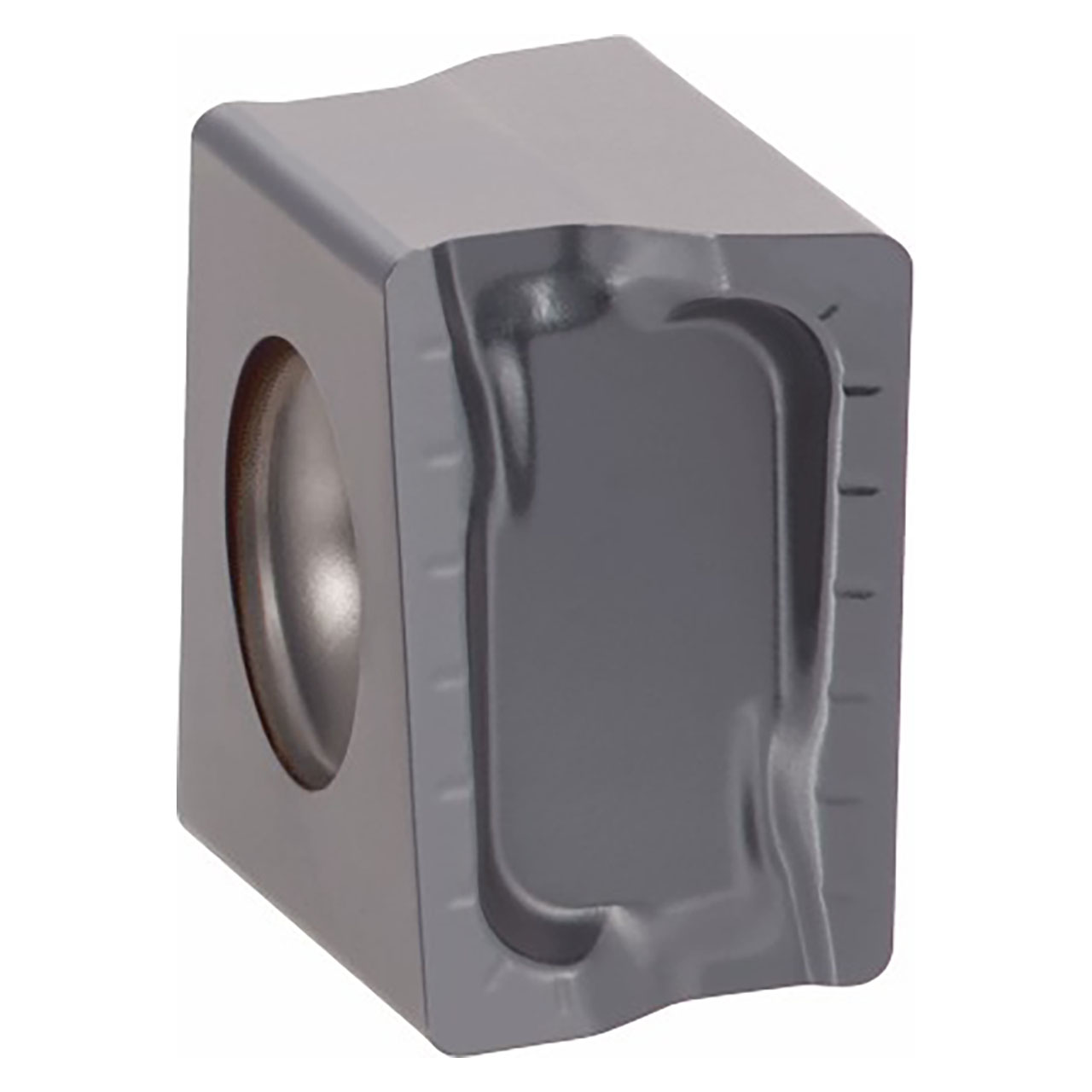

Tungaloy 6817169 | LMEU120816ZNEN-MJ AH725 0.315" Thickness x 0.528" Insert Length x 0.063" Radius TiAlN Coated Carbide Milling Insert

$30.25 $25.11
(You save $5.14)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH725
Finish/Coating:
TiAlN
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Length (Inch):
17/32"
Length (Decimal Inch):
0.5280"
Length (mm):
13.41mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3150"
Thickness (mm):
8.00mm
interval quantity:
10
SKU:
23022759
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Tangentially mounted inserts with 4 cutting edges for slot milling cutters.


Product Specifications
# MFG6817169
Corner Radius (Inch)0.063"
Insert Length (Inch)0.528"
Insert Thickness (Inch)0.315"
Insert Width (Inch)1/2"
Number of Cutting Edges4
ApplicationSlot Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH725
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
