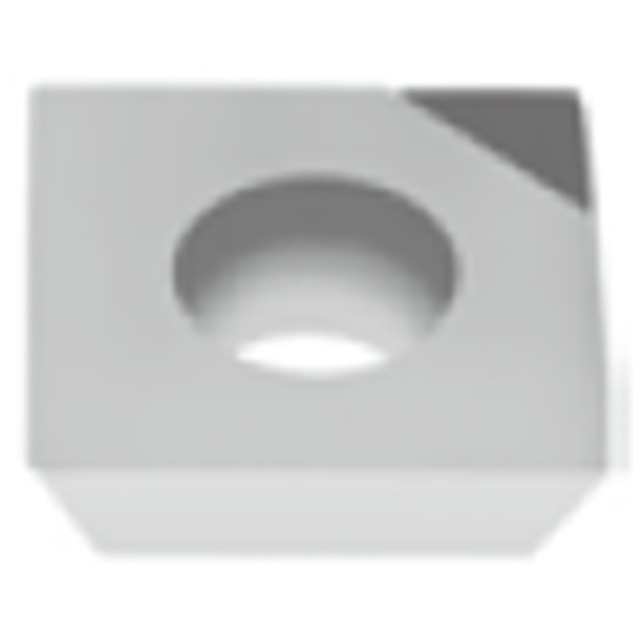

Positive 20 degree relief angle, G class, square PCD insert for T/EFE12 milling cutter.
Product Specifications
Manufacturer Part Number | 6822305 |
Cutting Edge Effective Length (Inch) | 1/2" |
Depth of Cut Maximum (Inch) | 0.118" |
Insert Thickness (Inch) | 0.157" |
Insert Width (Inch) | 1/2" |
Maximum Feed per Tooth | 0.0079"/tooth |
Minimum Feed per Tooth | 0.002"/tooth |
Number of Cutting Edges | 1 |
Wiper Edge Length | 0.071" |
Application | Face Milling |
Body Material | Carbide |
Grade | DX140 |
Cutting Edge Material | PCD |
Applicable Material | Non Ferrous Metals |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
DX140
Width (Inch):
1/2"
Width (Decimal Inch):
0.4960"
Width (mm):
12.60mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
