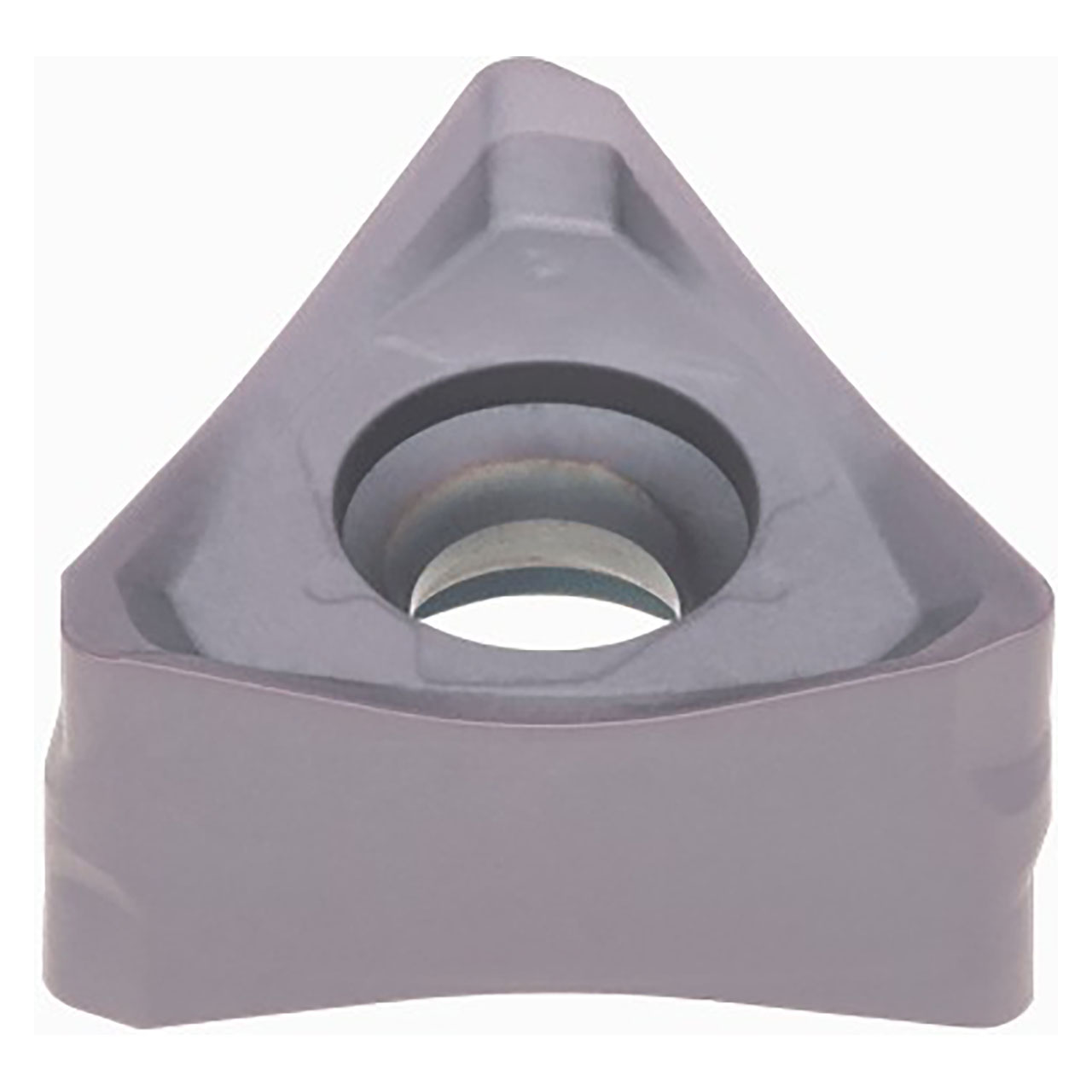

M-class, double-sided triangle insert with 6 edges and MJ chipbreaker.
Product Specifications
| # MFG | 6824039 |
| Cutting Edge Effective Length (Inch) | 0.472" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.433" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.28" |
| Maximum Feed per Tooth | 0.0118"/tooth |
| Minimum Feed per Tooth | 0.0031"/tooth |
| Number of Cutting Edges | 6 |
| Wiper Edge Length | 0.046" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | AH3225 |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3225
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
9/32"
Thickness (Decimal Inch):
0.2800"
Thickness (mm):
7.11mm
interval quantity:
10
